Internal Rotor Ignition with STAGE6 R/T MK2 Reprogramming Kit by PVL for AM6
for YAMAHA, APRILIA, MBK, HUSQVARNA, BETAMOTOR, FANTIC MOTOR, GENERIC, KEEWAY, KREIDLER, MALAGUTI, MASAI, PEUGEOT, RIEJU, SHERCO, VENT
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-4%
Special Price €640.00 Regular Price €670.00

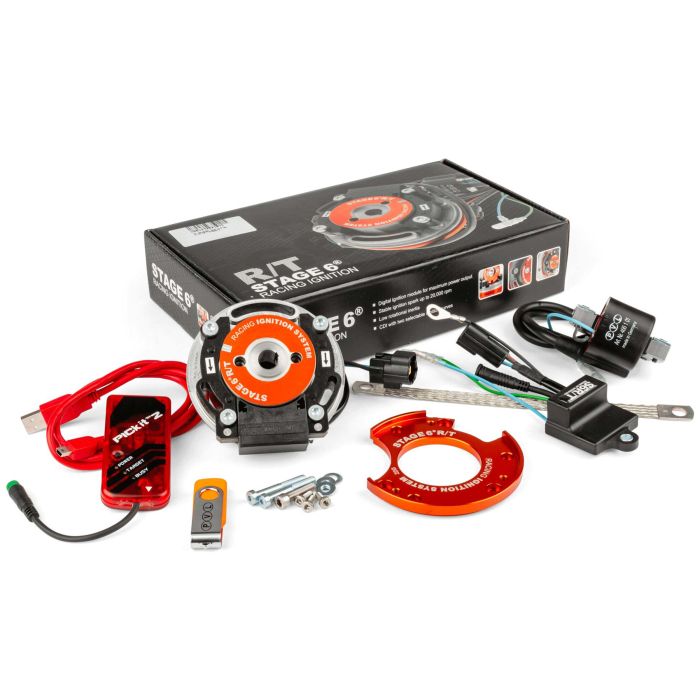

Internal Rotor Ignition AM6 + CDI Reprogramming Kit
The Stage6 R/T internal rotor PVL ignition has been updated! The new Stage6 R/T MK 2 internal rotor ignition for 50cc bikes with Minarelli AM6 engines (Rieju MRT, Beta RR, Sherco 50, Yamaha DT50, and others) now features a freely programmable control unit that allows you to adjust the ignition curve to the engine's configuration and preferences.
Optional Mapping Programming
If you do not want (or cannot) program the control unit, no problem! The included control unit is already loaded with the latest MK2 ignition curves. This means the ignition is plug & play without needing to use the programming function unless desired.
- Option 1: Do not connect the green wire to ground: Curve with less advance → track racing
- Option 2: Connect the green wire to ground: Curve with more advance → acceleration races
- Option 3: Program the ignition curve yourself. To program the CDI, special software and the Stage6 R/T interface with code S6-45ET017 are required.
If you want more top-end potential, you can install a weighting disc on the ignition rotor. This modification increases inertia at high RPMs.
Stage6 - PVL PARTNERSHIP for Maximum Power
As with the previous model, PVL provides extremely tested and reliable hardware, while Stage6 contributes the software, namely the two ignition curves, based on the experience of thousands of bench tests and years on the track in the most prestigious competitions.
A must for racing scooters and tuning projects, when it comes to getting the maximum performance from your AM6 engine.
Technical Features
- Digital internal rotor ignition
- Variable advance for optimized ignition up to 20,000 RPM
- Two competition mappings
Control Unit:
- Digital ignition controlled by a controller
- Small and lightweight dimensions, thanks to SMD technology
- Freely programmable
High Voltage Coil:
- Ignition starts at less than 400 RPM
- Highly effective capacitive discharge
- Constant discharge voltage
Stator-Rotor Unit:
- Lightweight internal rotor
- Low rotational inertia
- Generator winding overmolded on the stator
Notes and Recommendations for the Stage6 R/T Ignition:
- The Stage6 R/T MK2 ignition is a racing ignition, therefore it does not provide power for lights/water pump. A battery is required to power the electrical system.
- It cannot be used in combination with Malossi MHR Team crankshafts.
- It is recommended to use a racing spark plug and kill switch.
- Ensure there is a ground wire between the engine casing and the frame!
Included Programming Software for Stage6 R/T Ignition
Programming software and hardware for the Stage6 R/T internal rotor ignition.
The Stage6 R/T ignition comes with a CDI featuring 2 pre-programmed ignition curves. If you want to take it a step further, you can adjust the mappings to your individual configuration using this software.
Interface and Compatibility
The supply includes the necessary hardware interface and the software in both German and English versions.
The software is compatible with Windows 10, and detailed installation and application instructions are included on the USB stick.
