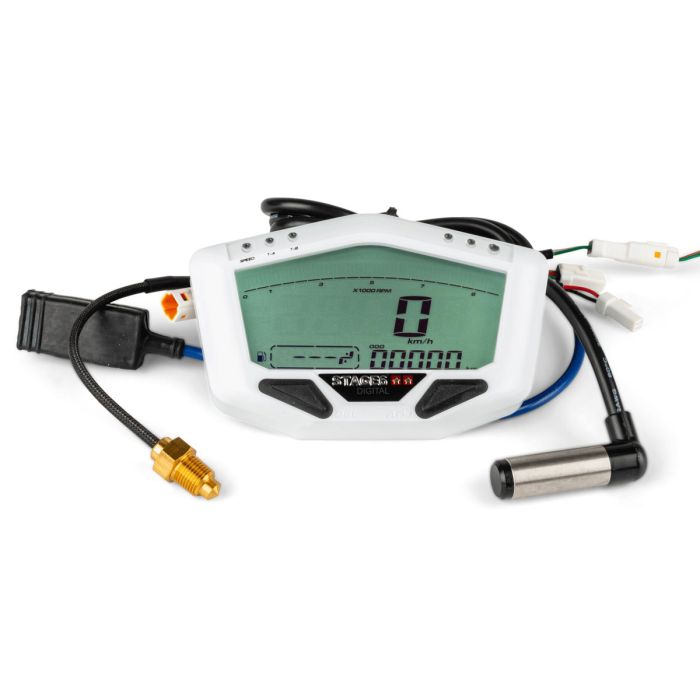

Universal Instrumentation STAGE6 MK2 Speedometer Tachometer 12V White

STAGE6 MULTIFUNCTION MK2 INSTRUMENTATION

The popular Stage6 R/T digital tachometer has been updated: the MK 2 version of the Stage6 R/T multifunction instrument can now finally display the much requested exhaust gas temperature (EGT).

The tachometer is available in black, white, and orange colors.

STAGE6 DASHBOARD FUNCTIONALITY

The display is illuminated, the tachometer measures 100x60x20 mm, and operates at 12V.

The speed is measured using a magnetic sensor attached to the wheel. Alternatively, there is also a tachometer adapter available for Yamaha Aerox / MBK Nitro models KO-BF580011, which directly transmits the speed to the instrument through the mechanical odometer drive.

Suitable for 2-stroke and 4-stroke engines, scooters, motorcycles, and even cars!

EXTRA EGT MEASUREMENT

With the new S6 R/T tachometer, a second display is no longer necessary to read the exhaust gas temperature. With the help of the EGT probe (to be purchased separately!!), it is possible to measure the exhaust gas temperature and optimize the carburetor tuning accordingly.

This way, it is easy to monitor the carburetor tuning with changing temperatures and with any modifications made to the engine. The maximum values of water temperature and EGT are saved in memory and can still be read in real time!

With this update, we have managed to expand the already very complete multifunction device into a complete cockpit that meets all needs.

Note: the S6-40ET001 sensor and the extension (if necessary) for the EGT function must be ordered separately!

MK2 TACHOMETER ACCESSORIES

The tachometer comes with 1 PT-1/8 temperature sensor for water temperature.

Additional water temperature sensors (M10 x 1.0 or M14 x 1.25) are available as spare parts for Piaggio, Peugeot, and geared motorcycles. The exhaust gas temperature probe, an EGT extension, and the clamp for the EGT sensor (manifold) are also available separately.

STAGE6 R/T MK2 TACHOMETER FUNCTIONS:

• Tachometer 0-360 km/h (alternatively mph)
• Tachometer up to 20,000 rpm
• Scalable speed graph
• Exhaust gas temperature EGT (EGT probe available as optional!)
• Thermometer 0-250°C (PT-1/8" sensor)
• Operating hour meter 0-999.9 h
• Fuel gauge 0-100%
• Voltmeter 0-18.0 V
• Odometer, gear flash, maximum speed recorder, temperature alarm

In addition, there is an integrated Power Test / Stopwatch function, which allows you to measure the following fundamental data for your tuning:
- Time required to reach a certain speed.
- Time required to reach a certain distance.

Specifications:

• Brand: Stage6 R/T
• Product Type: Tachometer
• Functions:
  • Odometer
  • Hour
  • Fuel Indicator
  • RPM Indicator
  • Exhaust Gas Temperature
  • Engine Temperature
  • Usage Time
  • RPM
  • Speed Km/h
  • Voltmeter
• Power Supply: 12V Power Supply, 9V Battery
• Digital Display
