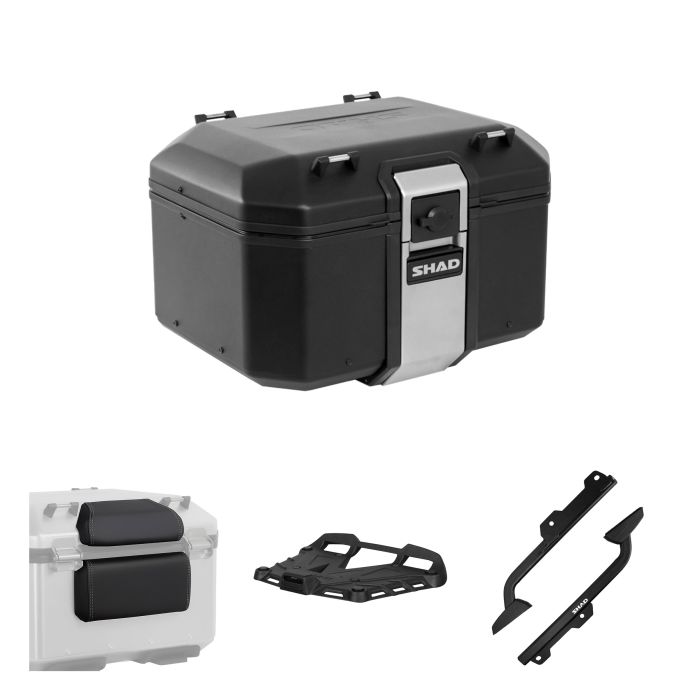

SHAD TERRA TR48 Top case kit Black Edition for SUZUKI GSX-8 R/S

Kit SHAD composed of the following items:

SHAD TERRA TR48 Motorcycle top case Black Edition 48L

D0TR48100B

The TR48 top case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. The TERRA BLACK EDITION is finished with scratch resistant powder coated paint. Includes the patented “TERRA Lock System”.

Mounting plate not included.

The TR48 top case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. The TERRA BLACK EDITION is finished with scratch resistant powder coated paint. Includes the patented “TERRA Lock System”.

• Capacity for 1 helmet (Trail) or 2 helmets (Flip-up and jet).

• “TERRA Lock System” patented. Includes the lock mechanism and a retractable carrying handle. Designed for quick use with one hand which allows the user to open, close, mount and remove the case in just a few seconds.

• It has an aerodynamic, integrated structure made from a hardened aluminium alloy.

• Internal foam base that reduces the movement of the inside load.

• The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance).

• Possibility of adding additional load thanks to its external AISI 304 stainless steel hooks.

• Requires the installation of a SHAD Top Master and a mounting plate (not included). Three options of mounting plates: SHAD standard plate (D1B591PA), the Aluminium mounting plate or the Black Aluminium mounting plate (D1BTRPA2).

• The keys and lock cylinder are the new premium version from SHAD, with a system that reduces the chance of theft and with a cover that stops dust from entering. The lock cylinders are easy to change: You can unify the top & side cases for use it with one key.

• Maximum recommended load: 10 kg.

• Size: 49,5/41,8/32,2 cm.

• Weight: 7,4 kg.

• Designed and made 100% in Barcelona.

• Optional accessories: The optional two pieces backrest (D0RI75) made with two layers of polyurethane foam, covered in synthetic leather with two textures, which guarantees total comfort for the passenger. Inner bag (X0IB47).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-000) can be installed, allowing the use of the original BMW key.

Check SHAD.es for product-specific accessories made to enhance your riding experience.

SPARE PARTS

• D1TRTSR - Top Case Lock Set SHAD UPPER PART TERRA LOCKING SYSTEM
• D1TR48MIR - Top Case Lock Set SHAD LOWERPART TR48 LOCKING SYSTEM
• D1TRBO1R - Top Case Lock Set SHAD LOCK KIT KEYS TERRA TOP CASE
• D1B6TIR - Top Case Spare Parts SHAD LID STOP STRAP
• 203507R - Top Case Spare Parts SHAD BOX SEAL GASKET TERRA
• X0TR02R - Top Case Spare Parts SHAD INNER MAT TERRA TOP CASES
• 203504R - Rubber pads kit for SHAD D1BTRPA/D1BTRPA2 plates
• D1TR47MIR - Top Case Lock Set SHAD LOWERPART TR47 LOCKING SYSTEM

RELATED WITH

• 201604 - Brake light for SHAD SH26/29/33/34/37/48/50/51/58/59 top cases
• D0RI75 - Top Case Backrest SHAD BACKREST TERRA TOP CASES
• D1BTRPA - Top Case Plate SHAD D1BTRPA TOP MASTER ALUMINIUM GRIGIO
• D1BTRPA2 - Top Case Plate SHAD D1BTRPA2 TOP MASTER ALUMINIUM BLACK
• X0IB47 - Internal Motorcycle Bags SHAD X0IB47 33L

SHAD Top Master Rear rack for SUZUKI GSX-8 R/S

S0GS85ST

Fittings to mount a SHAD top case on the motorcycle.

The SHAD Top Master fitting allows mounting a top case onto the motorcycle.It is a fitting specifically designed por each motorcycle model, taking into account its features. The result is a high-quality product, comfortable, safe, and easy to assemble and disassemble.

To mount the top case onto the bike it is necessary to add to this top fitting, the plate included in the SHAD cases (except for TERRA).

Before starting any installation, please read these instructions carefully, from start to finish.

Check the difficulty level on the user guide and refer to the “Installation Difficulty Description” document available on our website shad.es/faqs.

Failure to follow the installation guidelines will void the warranty. The manufacturer will not be held responsible for any damage or injury resulting from improper installation or misuse.

RELATED WITH

• D0B26100 - Top Case SHAD TOP MASTER SH26 BLACK 26L
• D0B29100 - Top Case SHAD TOP MASTER SH29 BLACK 29L
• D0B33200 - Top Case SHAD TOP MASTER SH33 BLACK 33L
• D0B39100 - Top Case SHAD TOP MASTER SH39 BLACK 39L
• D0B40100 - Top Case SHAD TOP MASTER SH40 BLACK 40L
• D0B40199 - Top Case SHAD TOP MASTER SH40 CARGO BLACK 40L
• D0B40200 - Top Case SHAD TOP MASTER SH40 ALU LOOK GREY 40L
• D0B45100 - Top Case SHAD TOP MASTER SH45 BLACK 45L
• D0B46200 - Top Case SHAD TOP MASTER SH46 BLACK 46L
• D0B47106 - Top Case SHAD TOP MASTER SH47 WHITE 47L
• D0B47206 - Top Case SHAD TOP MASTER SH47 RED 47L
• D0B48300 - Top Case SHAD TOP MASTER SH48 DARK GREY 48L
• D0B48400 - Top Case SHAD TOP MASTER SH48 TITANIUM BLACK 48L
• D0B59200 - Top Case SHAD TOP MASTER SH59X GREY 59L
• D0TR41100 - SHAD TERRA TR41 motorcycle topcase black 41L
• D0TR41200 - SHAD TERRA TR41 motorcycle topcase aluminum 41L
• D0TR48100 - Aluminum Top Box SHAD TR48 TERRA 48L
• D0TR48100B - Aluminum Top Box SHAD TR48 TERRA BLACK EDITION 48L
• D0TR55100 - ALUMINUM TOP BOX SHAD TR55 TERRA 55 L
• D0TR55100B - ALUMINUM TOP BOX SHAD TR55 TERRA 55 L BLACK EDITION

SHAD Top case plate black aluminium with screws

D1BTRPA2

Mounting plate made of high-quality solid cast aluminum that allows an innovative and functional design: better integration into the motorcycle and additional fixing points to carry extra load. Designed and manufactured in Barcelona.

Made of high-quality solid cast aluminum that allows an innovative and functional design: better integration into the motorcycle and additional attachment points to carry extra cargo. Designed and manufactured in Barcelona. Valid for SHAD suitcases from the Terra range.

• Made of high quality cast aluminum.

• 8 additional attachment points to carry an extra load when the case is not installed.

• The metallic paint provides extra resistance to scratches.

• Mounting plate compatible with the TERRA family (TR55, TR48 and TR37) and SH family (SH48, SH50, SH58X and SH59X).

• Included: all the necessary parts to mount it on most SHAD Top Master fittings (check compatibility on shad.es) or directly on the original motorcycle mounting plate.

RELATED WITH

• D0B48300 - Top Case SHAD TOP MASTER SH48 DARK GREY 48L
• D0B48400 - Top Case SHAD TOP MASTER SH48 TITANIUM BLACK 48L
• D0B59200 - Top Case SHAD TOP MASTER SH59X GREY 59L
• D0TR48100 - Aluminum Top Box SHAD TR48 TERRA 48L
• D0TR55100 - ALUMINUM TOP BOX SHAD TR55 TERRA 55 L
• D0TR55100B - ALUMINUM TOP BOX SHAD TR55 TERRA 55 L BLACK EDITION
• D0TR55200B - ALUMINUM TOP BOX SHAD TR55 TERRA 55 L PURE BLACK

Backrest for SHAD TERRA TR37/48/55 top cases

D0RI75

Backrest for Terra top cases and SH51. 2 piece set.

Backrest for Terra top cases. 2 piece set. The new best friend for any co-pilot. Made from high quality bielastic Skay & high performance polyurethane cushion that provides long life even in extreme conditions.
