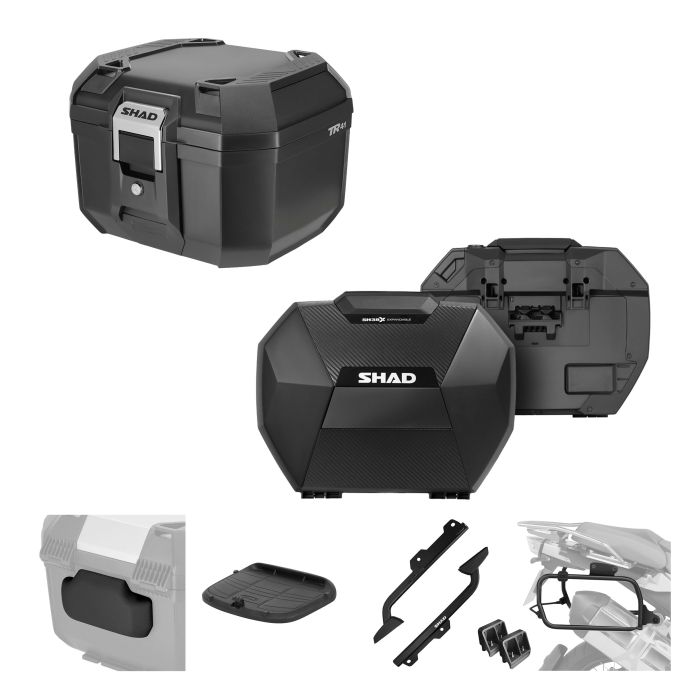

SHAD Complete kit TR41 black and SH38X carbon for VOGE 900 DSX / Black Knight

Kit SHAD composed of the following items:

SHAD TERRA TR41 Motorcycle top case black 41L

D0TR41100

The TERRA TR41 topcase has capacity for two JET helmets and up to 5kg of cargo inside. Made of reinforced polypropylene, it offers superior resistance with minimal weight. Designed 100% in Barcelona, it has a structure designed to resist. Its sealed frame protects the luggage from rain or dust. It includes upper hooks for extra load and a stainless steel closure that guarantees maximum security. The TR41 is a versatile case, suitable for both road and off-road.

• Capacity for two M-size JET helmets or one XL-size trail helmet (ECE 22.06).

• Structure made of high-quality reinforced polypropylene, to obtain maximum resistance with a minimum weight of 3.8 kg.

• Security: Closing structure made of industrial grade AISI 304 stainless steel. Integrated closing system with handle. Allows you to open, close, remove and transport the case in a matter of seconds.

• Water resistant (IPX5 equivalent): Incorporates a durable rubber seal to improve sealing and tightness.

• SHAD mounting plate included.

• Unifies the cylinders: the cylinders of the top and side cases can be easily replaced, to be used with a single key.

• Option to add additional load thanks to its 4 high-strength upper hooks for bulky loads.

• Maximum recommended load (internal and/or upper): 5 kg.

• Size: 46.5/40.8/31.5 cm.

• Weight: 5,85 kg.

• Designed 100% in Barcelona.

• Optional accessories: Backrest (D0RI41) made with two layers of polyurethane foam, which guarantees passenger comfort. Brake light (D0B40KL). Unpainted cover (D1TR41ER).

Check SHAD.es for specific accessories for each product, made to improve your driving experience.

SHAD SH38X Pair of motorcycle side cases carbon look expandable 38L

D0B38106

SHAD, a leading brand in motorcycle luggage and pioneers in expandability, presents an innovative set of EXPANDABLE side cases adaptable to the latest generation of high-end motorcycles. Its cutting-edge design and technology have earned it the prestigious Reddot Design Award 2024.

Ideal for any regular motorcycle user who values to have an extra load capacity at a given time. Or for all those bikers who want to reduce the width of their bike with the equipment installed and improve safety and riding sensations on their motorcycle trips.

The design of the locking system rests on the 3P or 4P* system, achieving maximum integration with the motorcycle.

In addition, the Double Locking System locking system is used to lock it on the attachment and, at the same time, prevent access to the interior of the case.

The SH38X Carbon joins the current range of expandable top cases SH58X and SH59X, allowing the most demanding and advanced bikers to have a set of EXPANDABLE top and side cases. More details:

• Capacity: 1 modular helmet XL ECE-22-06 (expanded).

• The most compact case on the market for an XL modular helmet.

• Expandable: Allows to increase its size telescopically up to +70mm (40%).

• Compatible with 3P SYSTEM (Patented) and 4P* System.

• It offers maximum security thanks to its innovative hermetic “Premium Smart Lock

• The case can be opened, closed, and removed from the motorcycle in a few seconds, as well as carried with the large integrated retractable handle.

• Double channel frame with rubber seals to ensure water resistance.

• Its Carbon cover guarantees great rigidity and resistance with minimal weight.

• Includes 2 safety keys and an extra cylinder lock, allowing one key to open three cases

• One turn of the key simultaneously locks the access to the inside of the case and secures it to the motorcycle.

• 2 Inner net included, in addition to securing the load, allow you to store small objects or documentation inside.

• An internal tray included that helps holding the load.

• Maximum load recommended: 10kg.

• Size: X50 Y27/34 Z39 (cm).

• Weight: 12,5 Kg.

• Optional accessories: Expandable inner bag (X0IB38). 4P Fitting Adapter (204632R), interchangeable color covers: black (D1B38E21), white (D1B38E08) and unpainted (D1B38ER).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-100) can be installed, allowing the use of the original BMW key.

*The 4P System binding adapter (204632R) is required.

SHAD Top Master Rear rack for VOGE 900 DSX / Black Knight

V0DS94ST

The SHAD Top Master fitting allows mounting a top case onto the motorcycle.It is a fitting specifically designed por each motorcycle model, taking into account its features. The result is a high-quality product, comfortable, safe, and easy to assemble and disassemble.

To mount the top case onto the bike it is necessary to add to this top fitting, the plate included in the SHAD cases (except for TERRA).

Backrest for SHAD TERRA TR41 top cases

D0RI41

SHAD offers a wide range of backrests developed for different models of cases, allowing the passenger to travel more comfortably.

SHAD 4P System Side frames for VOGE 900 DSX / Black Knight

V0DS944P

Designed and engineered 100% in Barcelona to mount the side cases & saddlebags.

· Steel structure covered with high resistant powder coated paint.

· 20mm diameter, the thickest on the market, it provides maximum durability and resistance.

· Reinforced with a crossbar for the most extreme rides.

ATTENTION: To install the SH23 side case, the D1TR27FIR adapter is required.

Pair of 4P System adapters for SHAD SH38X side cases

204632R

Set of 2 adapters required to install the SH38X side cases on 4P System fittings.

Contents:

• 1 set of 2 SH38X to 4P System adapters
