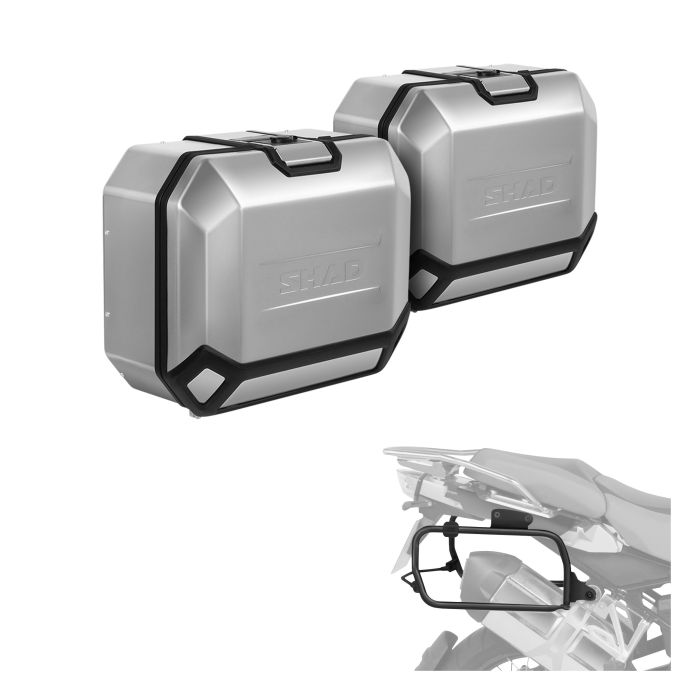

SHAD TERRA TR36 Cases kit aluminum 4P for RIEJU Xplora 557/707

Kit SHAD composed of the following items:

SHAD TERRA TR36 Motorcycle side case aluminium left side 36L

D0TR36100L

The TR36L side case is designed, engineered and made 100% in Barcelona. Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

The TR36L side case is designed, engineered and made 100% in Barcelona. Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

• “TERRA Lock System” patented. Includes the lock mechanism and a retractable carrying handle. Designed for quick use with one hand which allows the user to open, close, mount and remove the case in just a few seconds.

• It has an aerodynamic, integrated structure made from a hardened aluminium alloy.

• Side opening: perfect for “packing”, with large capacity and space, and an internal tray that allows you to hold your belongings, keep them tidy and prevent them from falling out when you open the suitcase.

• The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance).

• The keys and lock cylinder are the new premium version from SHAD, with a system that reduces the chance of theft. And a cover that stops dust from entering. (Keys and cylinder included only in right hand case).

• Compatible with SHAD 4P SYSTEM.

• Maximum recommended load: 10 kg.

• Size: 49,5/41,8/28,2 cm.

• Weight: 7,6 kg.

• Designed and made 100% in Barcelona.

• Accessories (not included): Expandable inner bag (X0IB47), Inner mesh (X0TR01).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-200) can be installed, allowing the use of the original BMW key.

Check SHAD.es for product-specific accessories made to enhance your riding experience.

SPARE PARTS

• D1B6TIR - Top Case Spare Parts SHAD LID STOP STRAP
• D1TRTSR - Top Case Lock Set SHAD UPPER PART TERRA LOCKING SYSTEM
• D1TR36MIR - Top Case Lock Set SHAD LOWERPART TR36 LOCKING SYSTEM
• 203507R - Top Case Spare Parts SHAD BOX SEAL GASKET TERRA
• D1TR361PR - Top Case Spare Parts SHAD TERRA SIDE CASE FITTING BRACKET
• 203163R - Top Case Cover SHAD 203163R GREY aluminium cover terra side case
• D1TRBOR - Top Case Lock Set SHAD TERRA LOCK + KEY

RELATED WITH

• D1TRBOR - Top Case Lock Set SHAD TERRA LOCK + KEY
• X0IB47 - Internal Motorcycle Bags SHAD X0IB47 33L
• X0TR01 - Top Case Spare Parts SHAD INNER MESH TERRA SIDE CASES

SHAD TERRA TR36 Motorcycle side case aluminium right side 36L

D0TR36100R

The TR36R side case is designed, engineered and made 100% in Barcelona. Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

The TR36R side case is designed, engineered and made 100% in Barcelona. Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

• “TERRA Lock System” patented. Includes the lock mechanism and a retractable carrying handle. Designed for quick use with one hand which allows the user to open, close, mount and remove the case in just a few seconds.

• It has an aerodynamic, integrated structure made from a hardened aluminium alloy.

• Side opening: perfect for “packing”, with large capacity and space, and an internal tray that allows you to hold your belongings, keep them tidy and prevent them from falling out when you open the suitcase.

• The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance).

• The keys and lock cylinder are the new premium version from SHAD (3 lock cylinders and 2 keys included). System that reduces the chance of theft and with a cover that stops dust from entering

• Compatible with SHAD 4P SYSTEM.

• Maximum recommended load: 10 kg.

• Size: 49,5/41,8/28,2 cm.

• Weight: 7,8 kg.

• Designed and made 100% in Barcelona.

• Optional accessories: Inner bag (X0IB47) Inner mesh (X0TR01, included).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-200) can be installed, allowing the use of the original BMW key.

Check SHAD.es for product-specific accessories made to enhance your riding experience.

SPARE PARTS

• D1TRTSR - Top Case Lock Set SHAD UPPER PART TERRA LOCKING SYSTEM
• D1TR36MIR - Top Case Lock Set SHAD LOWERPART TR36 LOCKING SYSTEM
• D1TRBOR - Top Case Lock Set SHAD TERRA LOCK + KEY
• 203507R - Top Case Spare Parts SHAD BOX SEAL GASKET TERRA
• D1TR361PR - Top Case Spare Parts SHAD TERRA SIDE CASE FITTING BRACKET
• 203163R - Top Case Cover SHAD 203163R GREY aluminium cover terra side case

RELATED WITH

• X0IB47 - Internal Motorcycle Bags SHAD X0IB47 33L

SHAD 4P System Side frames for RIEJU Xplora 557/707

R0XP754P

Fitting to mount SHAD side cases on the motorcycle.

Designed and engineered 100% in Barcelona to mount the side cases & saddlebags.

· Steel structure covered with high resistant powder coated paint.

· 20mm diameter, the thickest on the market, it provides maximum durability and resistance.

· Reinforced with a crossbar for the most extreme rides.

Before starting any installation, please read the instructions carefully, from start to finish.

Check the difficulty level on the user guide and refer to the “Installation Difficulty Description” document available on our website shad.es/faqs.

Failure to follow the installation guidelines will void the warranty. The manufacturer will not be held responsible for any damage or injury resulting from improper installation or misuse.

ATTENTION: To install the SH23 side case, the D1TR27FIR adapter is required.

RELATED WITH

• D0B23100 - Motorcycle Side Cases SHAD SH23 3P SYSTEM BLACK 23L
• D0B35200 - Motorcycle Side Cases SHAD SH35 3P SYSTEM GREY 35L
• D0B36200 - Motorcycle Side Cases SHAD SH36 3P SYSTEM CARBON 36L
• D0B38106 - Expandable Side Luggage Set SHAD SH38X Carbon 3P System
• D0B38200 - Expandable Side Luggage Set SHAD SH38X Aluminum 3P System
• D0TR36100L - Aluminum Motorcycle Side Case SHAD TR36L TERRA LEFT 4P SYSTEM 36L
• D0TR36100LB - Aluminum Motorcycle Side Case SHAD TR36L TERRA BLACK EDITION LEFT 4P SYSTEM 36L
• D0TR36100R - Aluminum Motorcycle Side Case SHAD TR36R TERRA RIGHT 4P SYSTEM 36L
• D0TR36100RB - Aluminum Motorcycle Side Case SHAD TR36R TERRA BLACK EDITION RIGHT 4P SYSTEM 36L
• D0TR47100L - Aluminum Motorcycle Side Case SHAD TR47L TERRA LEFT 4P SYSTEM 47L
• D0TR47100LB - Motorcycle Side Cases SHAD TR47L TERRA BLACK EDITION 4P SYSTEM BLACK 47L
• D0TR47100R - Aluminum Motorcycle Side Case SHAD TR47R TERRA RIGHT 4P SYSTEM 47L
• D0TR47100RB - Aluminum Motorcycle Side Case SHAD TR47R TERRA BLACK EDITION RIGHT 4P SYSTEM 47L
• X0TR30 - SHAD TERRA TR30 motorcycle side bags pair waterproof black 30L
• X0TR402 - SHAD TERRA TR40 Pair of side bags waterproof 32L

ATTENTION: To install the SH23 side case, the D1TR27FIR adapter is required.
