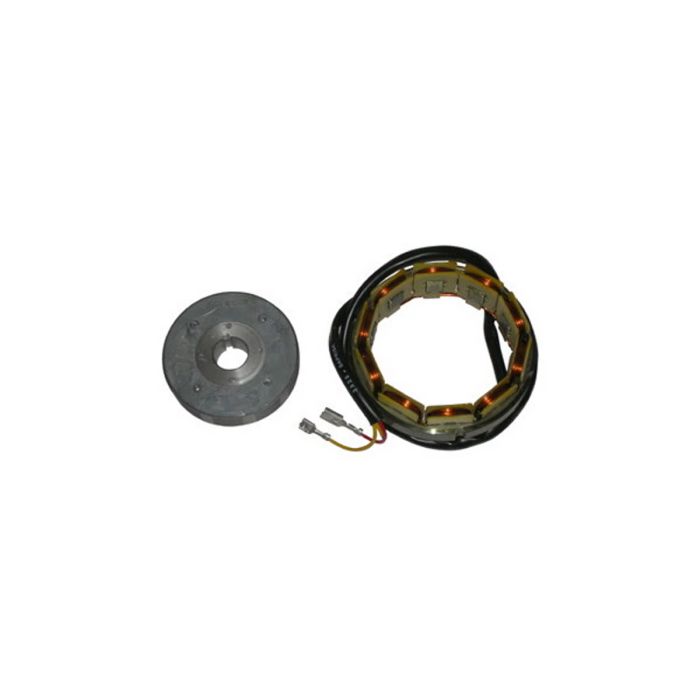

12v/150w Alternator Saprisa Lombardini

The Saprisa Lombardini alternator is designed to ensure high performance and reliability over time. This permanent magnet model, with a power of 12V and 150W, features an internal counter-phase rotor, allowing for optimal efficiency even at high speeds. With a capacity of 16A, it can handle significant electrical loads, making it ideal for motorcycles that require a constant and powerful supply.

The structure of the alternator consists of 10 poles, ensuring stable and continuous current generation. The rotor design, with a diameter of 76 mm and a thickness of 20 mm, is engineered to maximize energy output. The stator, with an outer diameter of 112 mm and a core thickness of 12.5 mm, contributes to effective heat dissipation, prolonging the life of the component.

Thanks to the three adjustment wires, installation is simple and straightforward, allowing for easy adaptation to the specific needs of the vehicle. With a maximum rotation of 10,000 RPM, this alternator is perfect for those seeking power and reliability in every driving situation. An essential component to keep your vehicle always performing at its best.

• Type: Permanent magnet alternator
• Power: 12V and 150W
• Capacity: 16A
• Number of poles: 10
• Rotor diameter: 76 mm
• Rotor thickness: 20 mm
• Stator outer diameter: 112 mm
• Stator core thickness: 12.5 mm
• Maximum rotation: 10,000 RPM
• Adjustment wires: 3
