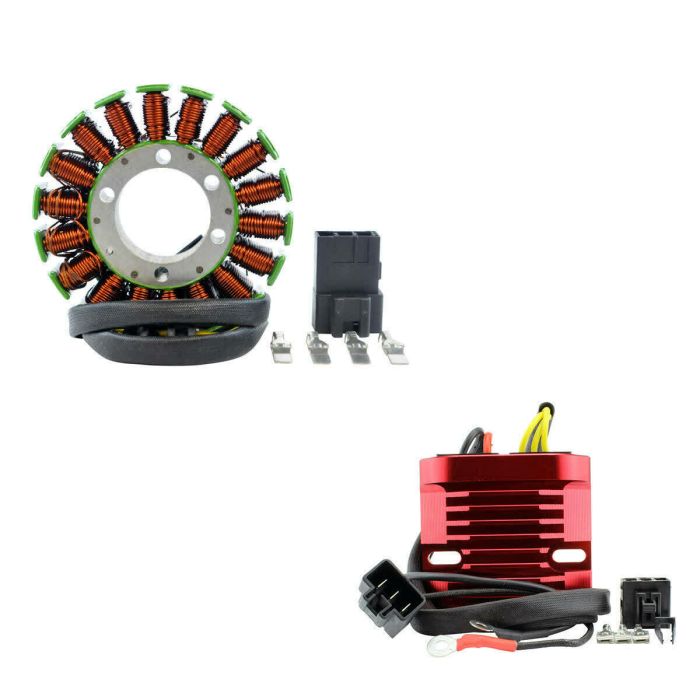

RM STATOR Stator and Regulator Kit for Honda VFR 800 Interceptor
-23%
Special Price €281.10 Regular Price €365.41
The RM STATOR stator and regulator kit is designed to ensure optimal performance and reliability in the operation of your motorcycle. The stator has an inner diameter of 42 mm and an outer diameter of 115 mm, with a thickness of 18 mm. The cable lengths are designed to facilitate installation: 90 mm from the stator to the grommet and 600 mm from the grommet to the plug. With 3 wires, 1 plug, and 3 pins, the stator is equipped with 18 poles, ensuring efficient power generation. The alternator specifications indicate a Black to Black resistance of 0.6 ohm with a tolerance of 20%, while the ground value is O.L, ensuring a safe and stable power system.
The red machined aluminum voltage regulator and rectifier from RMSTATOR is designed to withstand extreme conditions, with an operating temperature ranging from -20° to 85°. Its compact dimensions, with a width of 95 mm, a length of 90 mm, and a height of 30 mm, make it easily integrable into the motorcycle's electrical system. The cables, measuring 810 mm and 350 mm, provide flexibility in installation, while the mounting holes with a center-to-center distance of 75 mm ensure lasting stability. With 2 plugs, 5 pins, and 5 wires, the regulator can handle a minimum charging voltage of 14.5 V with a tolerance of 0.5 V and a maximum charging current of 50 A / 500 W, ensuring high performance even in heavy load situations. The open circuit voltage is less than 15 V, ensuring efficient and safe operation.
- Stator inner diameter: 42 mm
- Stator outer diameter: 115 mm
- Stator thickness: 18 mm
- Stator-grommet cable length: 90 mm
- Grommet-plug cable length: 600 mm
- Number of stator wires: 3
- Number of stator plugs: 1
- Number of stator pins: 3
- Number of stator poles: 18
- Black to Black resistance: 0.6 ohm (tolerance 20%)
- Ground value: O.L
- Regulator operating temperature: -20° to 85°
- Regulator width: 95 mm
- Regulator length: 90 mm
- Regulator height: 30 mm
- Regulator cable length: 810 mm
- Regulator cable length: 350 mm
- Mounting hole distance: 75 mm
- Number of regulator plugs: 2
- Number of regulator pins: 5
- Number of regulator wires: 5
- Minimum charging voltage: 14.5 V (tolerance 0.5 V)
- Maximum charging current: 50 A / 500 W
- Open circuit voltage: < 15 V
