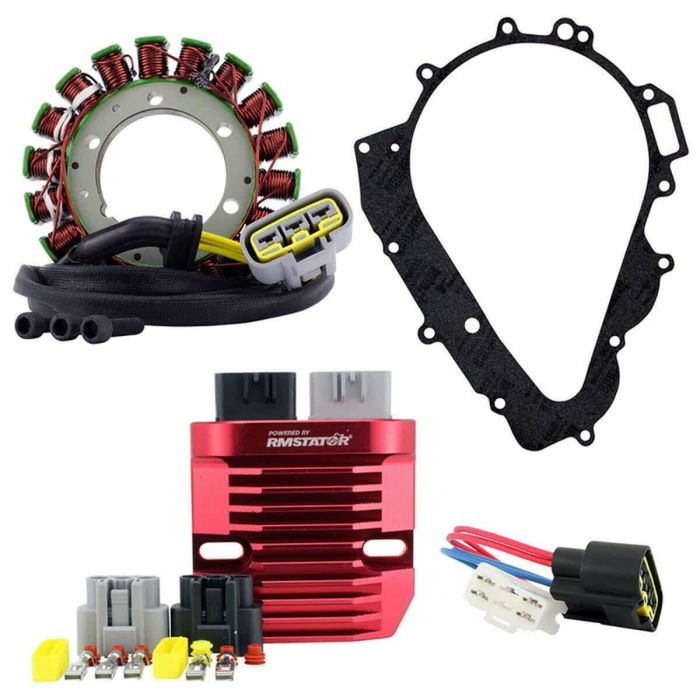

RM STATOR and REGULATOR KIT for Aprilia Tuono 1000

The RM STATOR E stator and regulator kit is designed to ensure optimal performance and reliability in your motorcycle. With an inner diameter of 54 mm and an outer diameter of 115 mm, this component integrates perfectly into your vehicle's electrical system. Its thickness of 14 mm and dimensions of 103 mm x 103 mm x 28 mm make it compact and easy to install.

Technical specifications include a cable length from the stator to the grommet of 160 mm and a cable length from the grommet to the plug of 1180 mm, ensuring a secure and lasting connection. The kit is equipped with 3 wires, 1 plug, and 3 pins, with a total of 18 poles for optimal energy distribution.

Regarding electrical performance, the 3p alternator has a resistance of 0.8 ohms ±20% between yellow and yellow, while the pickup has a resistance of 500 ohms ±20% between green and blue. The kit is designed to provide a minimum charging voltage of 14.5 V ± 0.5 V and a maximum charging current of 50 A / 500 W, ensuring efficient power for your engine. The open circuit voltage is less than 15 V, ensuring safe energy management.

The distance between the mounting holes, measured center to center, is 80 mm, while the kit includes 2 plugs and 5 pins for a versatile and robust connection. With this kit, you can rely on an electrical system that supports your two-wheeled adventures, keeping your motorcycle always ready to perform at its best.

• Inner diameter: 54 mm
• Outer diameter: 115 mm
• Thickness: 14 mm
• Dimensions: 103 mm x 103 mm x 28 mm
• Cable length from stator to grommet: 160 mm
• Cable length from grommet to plug: 1180 mm
• Number of wires: 3
• Number of plugs: 2
• Number of pins: 5
• Total poles: 18
• 3p alternator resistance: 0.8 ohms ±20% (yellow-yellow)
• Pickup resistance: 500 ohms ±20% (green-blue)
• Minimum charging voltage: 14.5 V ± 0.5 V
• Maximum charging current: 50 A / 500 W
• Open circuit voltage: < 15 V
• Mounting hole distance: 80 mm (center to center)
