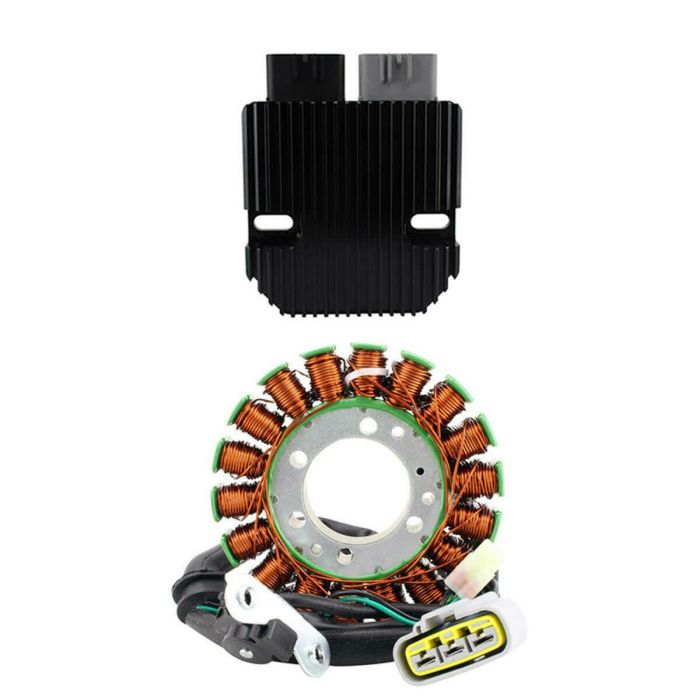

RM STATOR Stator and Regulator Kit for Triumph Street Triple 675 R

The RM STATOR stator and regulator kit is designed to ensure optimal performance and reliability in the operation of your motorcycle. The REVOLT voltage regulator, measuring 103 mm in width, 102 mm in length, and 26 mm in height, features mounting holes spaced 78 mm apart, two connectors, and five pins. This component can handle a minimum charging voltage of 14.5 V +/- 0.5 V and a maximum current of 50 A / 500 W, operating within a temperature range of -20° C to 85° C.

The REVOLT wiring has a length of 150 mm and includes three yellow wires, one red wire, and one green wire, also with two connectors. The stator, with an inner diameter of 42 mm and an outer diameter of 115 mm, has a thickness of 16 mm. The wire lengths vary: 250 mm from the stator to the grommet, 195 mm from the grommet to the first connector, 500 mm from the grommet to the second connector, and 280 mm for the pickup coil wire.

With a total of five wires, two connectors, and five pins, the stator is equipped with eighteen poles, ensuring a solid connection and efficient energy distribution. The resistance measurements for the alternator indicate a value of 0.6 ohm ±20% between the black wires, while for the pickup, the value between the green and gray is 244 ohm ±20%. This kit represents an ideal choice for those looking to optimize the performance of their two-wheeled vehicle.

• REVOLT voltage regulator
• Dimensions: 103 mm (width) x 102 mm (length) x 26 mm (height)
• Mounting hole spacing: 78 mm
• Number of connectors: 2
• Number of pins: 5
• Minimum charging voltage: 14.5 V +/- 0.5 V
• Maximum current: 50 A / 500 W
• Temperature range: -20° C to 85° C
• REVOLT wiring: length 150 mm
• Wires: 3 yellow, 1 red, 1 green
• Inner diameter of the stator: 42 mm
• Outer diameter of the stator: 115 mm
• Thickness of the stator: 16 mm
• Wire length: 250 mm (stator to grommet)
• Wire length: 195 mm (grommet to first connector)
• Wire length: 500 mm (grommet to second connector)
• Pickup coil wire length: 280 mm
• Total number of wires: 5
• Total number of connectors: 2
• Total number of pins: 5
• Number of poles of the stator: 18
• Alternator resistance: 0.6 ohm ±20% (between black wires)
• Pickup resistance: 244 ohm ±20% (between green and gray)
