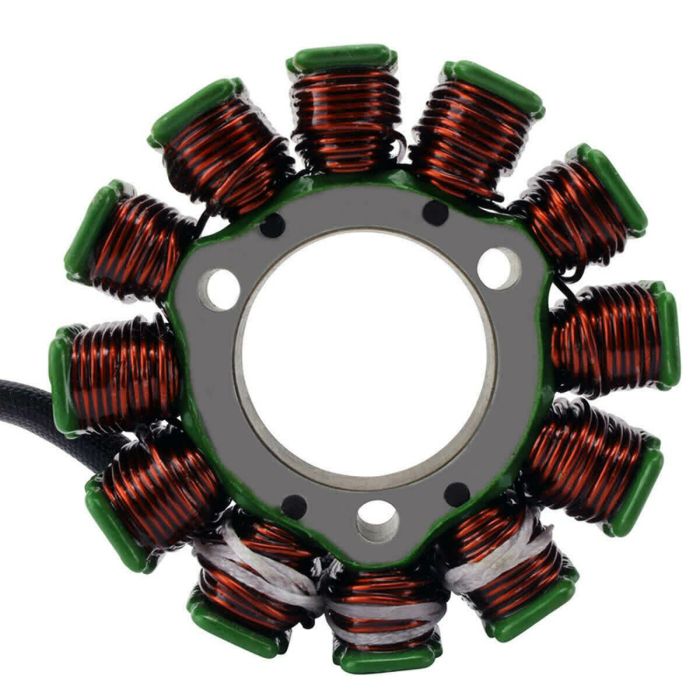

RM STATOR 80W Stator for KTM SX-F/XC-F 250/350/450

The 80W stator from RM STATOR is designed to ensure optimal performance and reliability in the operation of your two-wheeled vehicle. With an inner diameter of 32 mm and an outer diameter of 76 mm, this stator integrates perfectly into your motorcycle's electrical system. Its thickness of 17 mm ensures adequate robustness to withstand the stresses of the road.

Technical specifications include a cable length from the stator to the grommet of 125 mm and a cable length from the grommet to the plug of 510 mm, providing sufficient flexibility for installation. The pickup coil cable has a length of 100 mm, further facilitating assembly.

With 4 wires and 1 plug, the system is designed for a simple and secure connection. The 4 pins and 12 poles ensure an even distribution of power, while the alternator measurements, with a value of 0.4 ohms ±20% between the yellow wires and an infinite resistance to ground, ensure efficient operation. The pickup coil, with a resistance of 133 ohms ±20% between green and red, completes the package, making this stator an ideal choice for those looking to keep their motorcycle in perfect condition.

• Power: 80W
• Inner diameter: 32 mm
• Outer diameter: 76 mm
• Thickness: 17 mm
• Cable length from stator to grommet: 125 mm
• Cable length from grommet to plug: 510 mm
• Pickup coil cable length: 100 mm
• Number of wires: 4
• Number of plugs: 1
• Number of pins: 4
• Number of poles: 12
• Alternator resistance: 0.4 ohms ±20% (yellow wires)
• Resistance to ground: infinite
• Pickup coil resistance: 133 ohms ±20% (between green and red)
