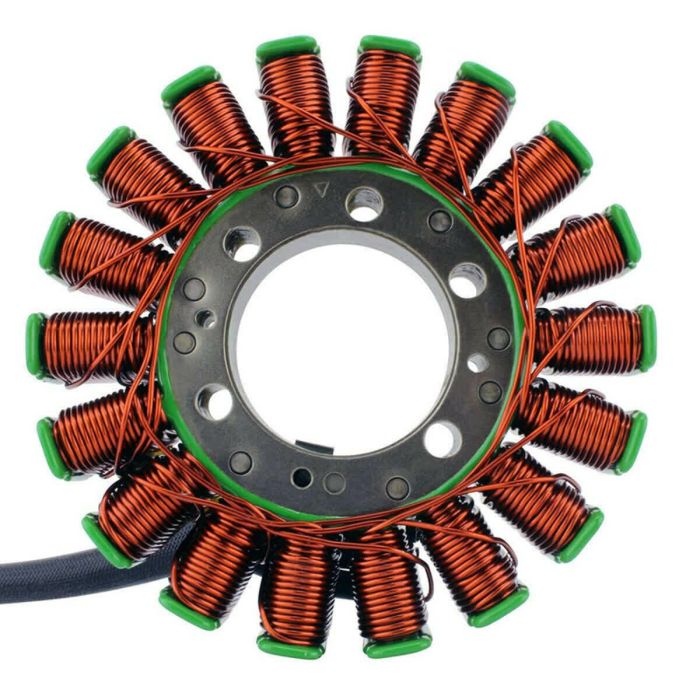

RM STATOR 18 Coils Stator for TRIUMPH Daytona 675

The RM STATOR with 18 coils is designed to ensure high performance and reliability in the operation of your engine. With an inner diameter of 42 mm and an outer diameter of 115 mm, this component is made to fit perfectly with the required technical specifications. Its thickness of 18 mm ensures adequate robustness, while the cable lengths, ranging from 240 mm for the connection to the grommet to 190 mm and 880 mm for the connection to the plug, offer optimal flexibility during installation.

This stator is equipped with 5 wires and 2 plugs, with a total of 5 pins, ensuring a secure and stable connection. With 18 poles, it is designed to maximize the energy efficiency of your motorcycle's electrical system. The alternator resistance specifications, which stand at 0.6 ohms ±20% between the black wires and an O.L reading to ground, indicate excellent conductivity. Additionally, the pickup coil wire has a resistance of 240 ohms ±20% between green and black, ensuring a quick and precise response.

This stator is an ideal choice for those looking for a reliable and high-performance component capable of supporting the needs of a motorcycle in any situation.

• Number of coils: 18
• Inner diameter: 42 mm
• Outer diameter: 115 mm
• Thickness: 18 mm
• Cable lengths: 240 mm (connection to grommet), 190 mm and 880 mm (connection to plug)
• Number of wires: 5
• Number of plugs: 2
• Total number of pins: 5
• Number of poles: 18
• Alternator resistance: 0.6 ohms ±20% (black wires), O.L to ground
• Pickup coil wire resistance: 240 ohms ±20% (between green and black)
