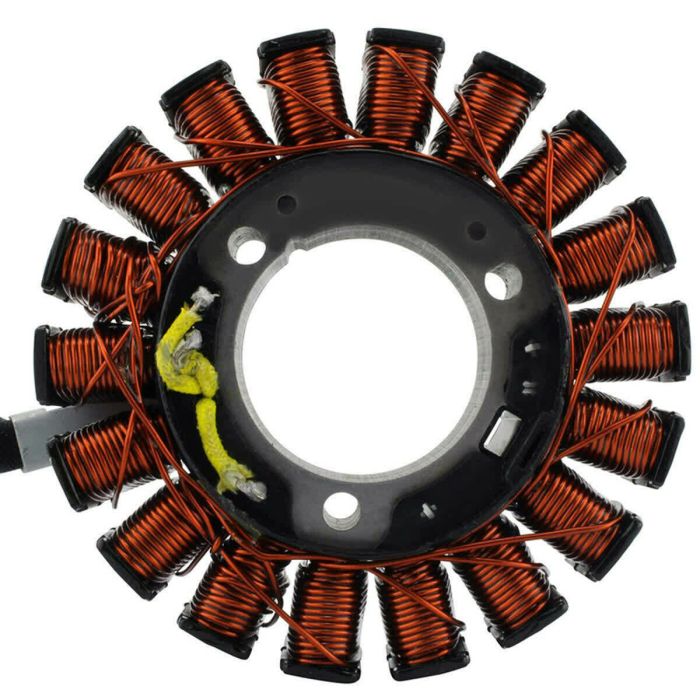

RM STATOR Stator for HONDA CRF 250 R
-20%
Special Price €122.80 Regular Price €153.48
The RM STATOR stator is designed to ensure optimal performance and reliability in the operation of your motorcycle. With an inner diameter of 42 mm and an outer diameter of 107 mm, this component integrates perfectly into the vehicle's electrical system. Its thickness of 22 mm ensures adequate robustness to face the challenges of the road.
The technical specifications include a wire length from the stator to the grommet of 70 mm, while the wires from the grommet to plug #1 measure 310 mm and those to plug #2 measure 190 mm. Additionally, the pickup coil wire has a length of 40 mm. The stator is equipped with 6 wires, 3 plugs, and 6 pins, with a total of 18 poles, ensuring efficient electrical connectivity.
Regarding electrical characteristics, the alternator has a resistance of 0.7 ohm ±20% between yellow and yellow, while the pickup shows a resistance of 231 ohm ±20% between blue/yellow and white/yellow. These specifications make the RM STATOR stator an essential component for the proper functioning of your motorcycle's charging system, ensuring that energy is generated and distributed effectively.
- Inner diameter: 42 mm
- Outer diameter: 107 mm
- Thickness: 22 mm
- Wire length from stator to grommet: 70 mm
- Wire length from grommet to plug #1: 310 mm
- Wire length from grommet to plug #2: 190 mm
- Length of pickup coil wire: 40 mm
- Number of wires: 6
- Number of plugs: 3
- Number of pins: 6
- Total number of poles: 18
- Alternator resistance: 0.7 ohm ±20% (yellow-yellow)
- Pickup resistance: 231 ohm ±20% (blue/yellow-white/yellow)
