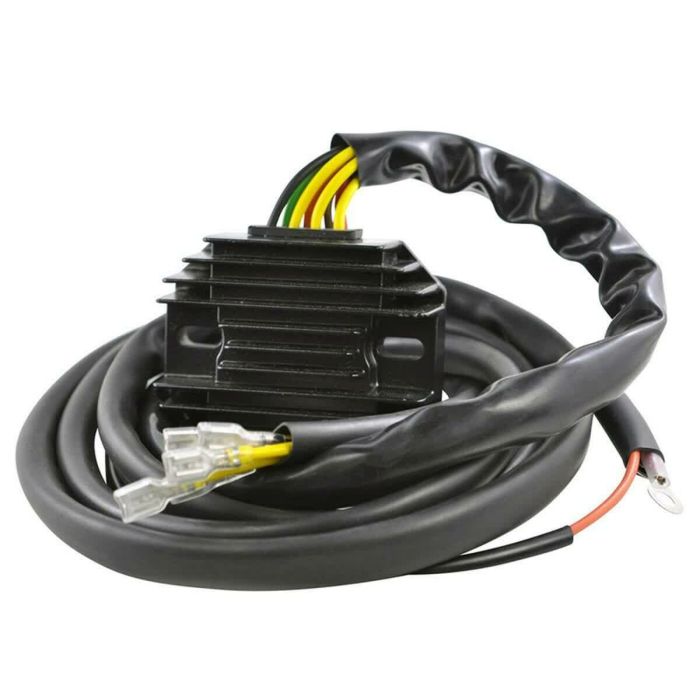

RM STATOR 12V Regulator for BMW R80 GS

The 12V RM STATOR regulator is designed to ensure optimal performance and reliability in your motorcycle's electrical system. With compact dimensions of 71 mm in width, 81 mm in length, and 29 mm in height, it easily integrates into your vehicle without taking up excessive space. The cables, available in three lengths (1030 mm, 1450 mm, and 1530 mm), provide flexibility in installation, while the mounting holes spaced 60 mm apart ensure a secure and stable fit.

Equipped with six connectors and eight pins, this regulator can handle a minimum charging voltage of 14.5V ± 0.5V and a maximum current of 50A/500W, thus guaranteeing a constant and powerful supply for your electrical system. The open circuit voltage reaches 15V, providing an additional assurance of efficiency.

Designed to operate in a wide temperature range, from -20 to 85 degrees Celsius, this regulator is ideal for tackling the challenges of any weather condition. The cables are color-coded for easy installation: three yellow wires for connection to the stator, one black wire for the D- terminal (negative of the field coil), one brown wire for the DF terminal (positive of the field coil), one red wire for the battery +, one green wire for the battery – and one orange wire for ignition.

• Dimensions: 71 mm (width) x 81 mm (length) x 29 mm (height)
• Three cable lengths available: 1030 mm, 1450 mm, 1530 mm
• Mounting hole spacing: 60 mm
• Number of connectors: 6
• Number of pins: 8
• Minimum charging voltage: 14.5V ± 0.5V
• Maximum current: 50A/500W
• Open circuit voltage: 15V
• Temperature range: -20 to 85 degrees Celsius
• Color-coded cables for easy installation

Choosing the 12V RM STATOR regulator means opting for an essential component that supports your motorcycle, ensuring that every ride is characterized by high and reliable performance.
