RM STATOR Regulator 12V 2 connectors for YAMAHA VIRAGO 500

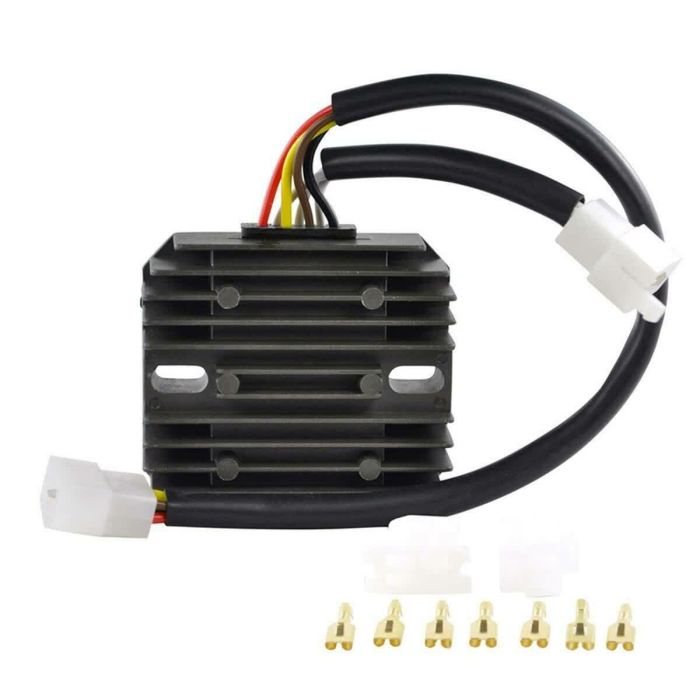

The 12V regulator from RM STATOR is an essential component to ensure the proper functioning of your motorcycle's electrical system. With compact dimensions of 90 mm in width, 80 mm in length, and 28 mm in height, it easily integrates into your vehicle. The cable lengths are 380 mm for the 4-pin and 130 mm for the 3-pin, providing flexibility during installation. The mounting holes, spaced 68 mm apart, ensure a stable and secure fit.

This regulator features 2 connectors and a total of 7 pins, with 7 wires that guarantee a reliable connection. It is designed to handle a minimum charging voltage of 14.5V with a tolerance of +/- 0.5V, and a maximum of 50A/500W, ensuring high performance even in the most demanding conditions. The open circuit voltage is less than 15V, making it an efficient component for your electrical system. Choose RM STATOR for lasting reliability and optimal performance on the road.

• Dimensions: 90 mm (width) x 80 mm (length) x 28 mm (height)
• Cable length: 380 mm (4 pin), 130 mm (3 pin)
• Mounting hole distance: 68 mm
• Number of connectors: 2
• Total number of pins: 7
• Number of wires: 7
• Minimum charging voltage: 14.5V (tolerance +/- 0.5V)
• Maximum load: 50A/500W
• Open circuit voltage: less than 15V
