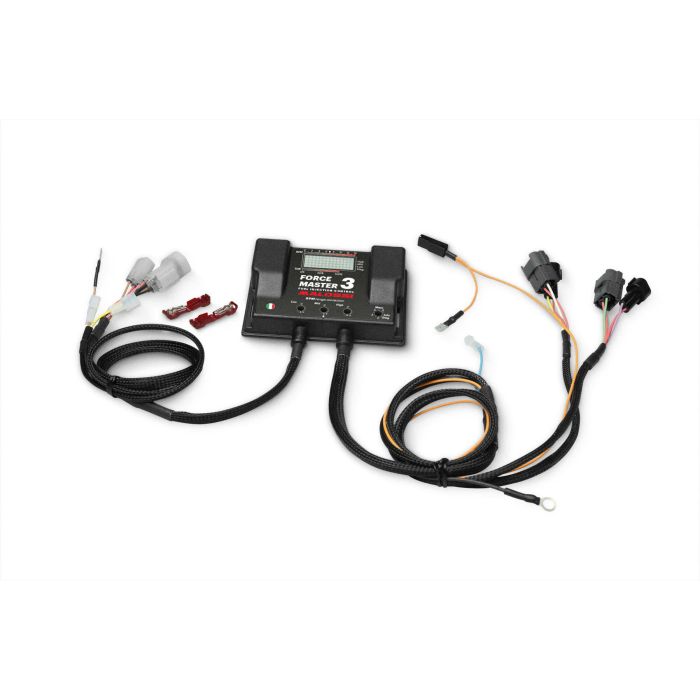

MALOSSI Force Master 3 Electronic Control Unit for YAMAHA

Electronic Control Unit MALOSSI Force Master 3

LIMITLESS

Imagine being able to harness every single horsepower of your engine, just as it is said that we only use a fraction of our brain. With the MALOSSI Force Master 3 electronic control unit, this becomes a reality. Designed for those who wish to elevate their scooter's performance to a higher level, the Force Master 3 represents the pinnacle of technology in the ECU sector.

LAMBDA MODULATOR

The scooter's original ECU is based on a fuel analysis system that interacts with the lambda sensor. The Force Master 3, on the other hand, revolutionizes this approach: it intercepts the signal from the original sensor and sends processed values from a virtual lambda. This allows for dynamic and customized fuel management, optimizing performance in every riding condition, even when the original system would not be able to intervene.

Thanks to an advanced circuit, electrical disturbances that normally affect the throttle position signal have been eliminated, improving the accuracy of the opening detection and reducing response times. The result? Superior performance and unprecedented engine efficiency.

HARDWARE AND INTERFACE

The hardware of the Force Master 3 is accompanied by a high-capacity microprocessor, which allows for the introduction of new software strategies and the optimization of the ECU's capabilities. The user interface has been designed to be intuitive and informative, with a graphical display that shows crucial parameters such as firmware version, system status, and the position of the fuel correction switches.

Technical Features:

• Fuel adjustment ± 14% at LOW / HIGH / MID
• RPM limiter: + 700 RPM
• 4 different mappings to suit every configuration
• Lambda Emulator for advanced management
• Temperature range: -20°C to +80°C
• Environmental protection: IP65

THE FORCE MASTER LEGACY

Force Master 3 is not just an evolution
