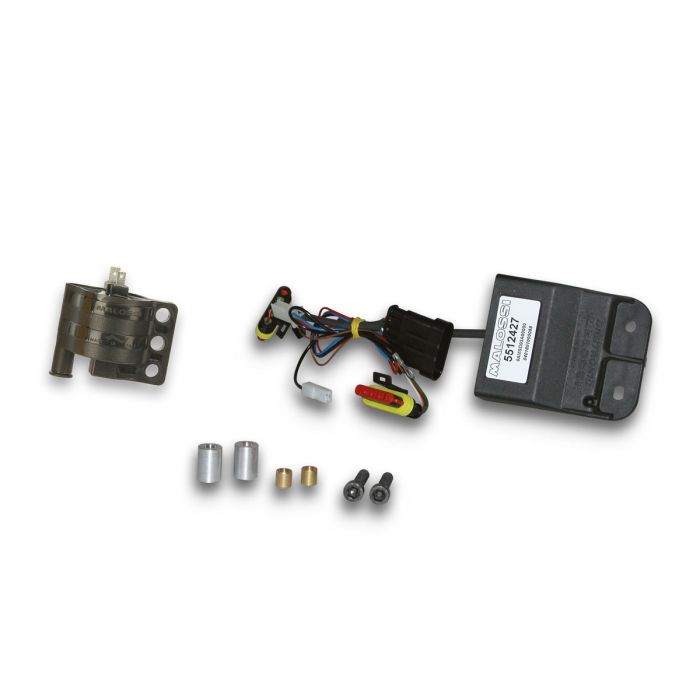

Malossi DIGITRONIC digital ECU with coil

The Malossi DIGITRONIC digital electronic control unit is a high-tech component designed for both street and competition scooters. This control unit has been developed to offer optimal performance on every scooter model it is installed on. Thanks to numerous tests on static benches, roller benches, and race circuits, an ideal ignition mapping has been defined to achieve the maximum performance from the vehicle.

One of the main features of Malossi electronic control units is their ease of installation. These control units are interchangeable with stock ones and connect perfectly to the original connectors, making the installation process simple and fast.

Another important functionality of Malossi control units is the ability to remove the rev limiter present on stock control units. This allows for full utilization of the engine's power and torque, even at higher speeds, up to 20,000 RPM.

Malossi control units use capacitive discharge technology, which allows for maximum limitation of disturbances during voltage discharge. Additionally, they provide an almost perfect voltage peak on the ignition spark plug, with values ranging from 35,000 to 50,000 volts, depending on the engine speed. These control units also offer very high and constant discharge voltages and currents, even with varying engine speeds.

Therefore, the Malossi DIGITRONIC digital electronic control unit, complete with coil, is an ideal choice for those who want to maximize the performance of their scooter, ensuring easy installation and optimal performance in every situation.

SPECIFICATIONS

• Power supply of the control unit: original
• Maximum RPM: 20,000
• Discharge voltage: 35,000 - 50,000 volts
• Timing: fixed
