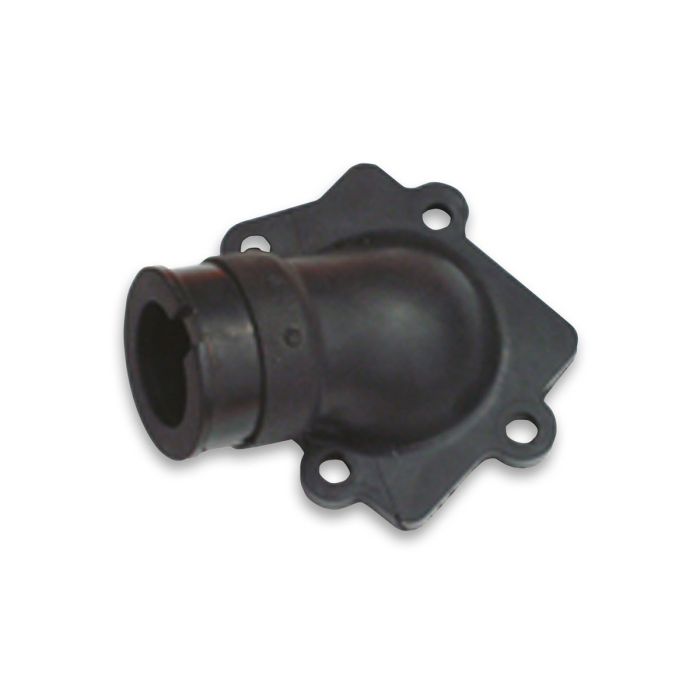

Malossi Manifold D 22/28 and length 24.5 inclined for Minarelli Vertical

The Malossi Ø 22x28 inclined intake manifold is an essential component for Yamaha, MBK, and Minarelli vertical 2-stroke engines with a displacement of 50cc. This manifold serves as an access corridor for the air-fuel mixture into the engine through the reed valve.

The overall performance of an engine depends on various factors, including volumetric, thermodynamic, and mechanical efficiency. Volumetric efficiency represents the ratio between the amount of mixture entering the combustion chamber and the engine displacement.

The intake manifold plays a fundamental role in volumetric efficiency, as it must allow the passage of the mixture with minimal friction. To avoid efficiency losses, it is important for the manifold to have smooth transitions and no sharp edges along the mixture's path.

In addition, the intake manifold acts as a reservoir for the fresh charge, allowing the mixture to accumulate and compress against the reed valves when they close.

This component also connects the carburetor to the engine crankcase or cylinder and can dampen vibrations transmitted from the crankcase to the carburetor, preventing fuel and air emulsion in the carburetor float bowl.

Malossi intake manifolds have been developed and tested by the Malossi research department, both on the road and on race circuits. The Malossi rubber intake manifold line features a composite structure, with an aluminum insert embedded in a plastic material resistant to oils and fuels. This ensures a rigid attachment to the crankcase and good elasticity of the manifold body.

Thanks to their decades of experience in the field of engine fuel systems, Malossi has created high-quality intake manifolds that offer optimal performance for the next generation of scooters.

SPECIFICATIONS

• Material: NBR
• Holes: Ø 6.7
• Conduit: Ø 22
• Inlet: Ø 28
• Total length: 24.5
• Carburetor application: PHVB 22

COMPATIBILITY NOTES

Please note: The following notes refer only to the vehicles listed below. These vehicle lists may not represent the complete compatibility list for the product.

The manifold is compatible with the original air filter.

• APRILIA SCARABEO 100 2 stroke
• BENELLI K2 100 2 stroke
• ITALJET MILLENNIUM 100 2 stroke
• MBK BOOSTER 100 2 stroke
• MBK NITRO 100 2 stroke
• MBK OVETTO 100 2 stroke
• YAMAHA AEROX 100 2 stroke
• YAMAHA BW'S 100 2 stroke
• YAMAHA NEO'S 100 2 stroke
