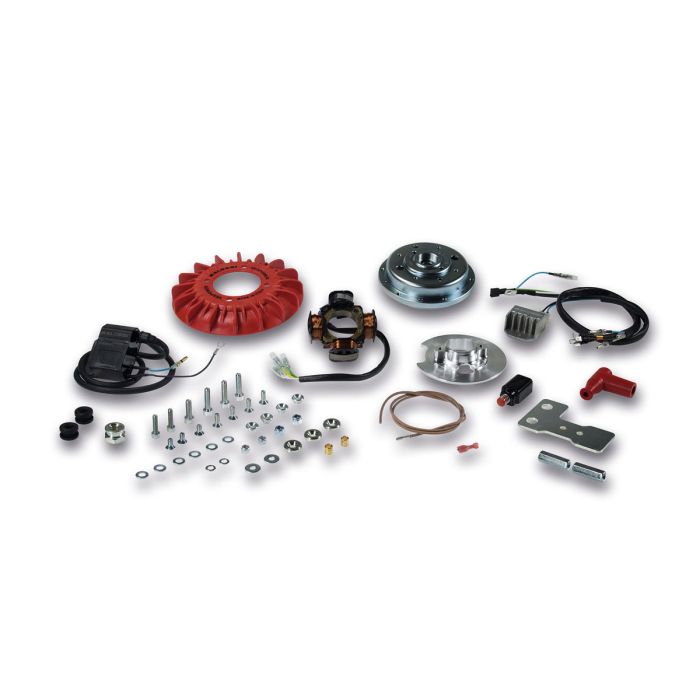

Malossi VESPower ignition Cone 19 Flywheel kg 1.2

The Malossi VESPower ignition is a high-quality technical component specifically designed for vintage Vespa motorcycles with gears. This line of complete ignitions offers a perfect and easy-to-install solution for every model.

The ignition stands out for several important features. The lightweight flywheel, weighing 1.2 kg, offers optimal inertia, as indicated in the provided table. It is made with a forged material that allows the addition of external masses (not included in the kit) for further balancing.

The system includes a 4-pole, 12 V and 90 Watt stator, with a dedicated output for battery charging. The fan, made of red plastic material, is equipped with booster secondary fins that improve cooling. The fan profile and power consumption distribution have been optimized to ensure excellent performance.

Each specific application comes with dedicated wiring, which further simplifies installation. Additionally, the ignition is equipped with an integrated coil/CDI unit, which helps improve system efficiency.

It is important to note that the voltage regulator is only included in certain models. It is recommended to carefully check the product specifications to ensure the presence of this feature.

The Malossi VESPower ignition is a reliable and high-quality technical component that offers optimal performance for vintage Vespa motorcycles with gears.

SPECIFICATIONS

• Applications: ET3 Primavera 125 2 stroke, Primavera 125 2 stroke
• Crankshaft cone: Ø 19
• Static weight: 1.2 kg
• Moment of inertia: 28 Kg/cm2

Additional flywheel masses are optionally available, allowing you to customize the ignition to your vehicle's preparation, further increasing the moment of inertia.

Two versions are available:

• Article: 1715715
• For all VESPower (except articles 5516956 and 5517175)
• Dimensions: Ø 144x105x18
• Static weight (including screws): 824 g
• Moment of inertia: 34 Kg/cm2

• Article: 1715716
• For all VESPower (except articles 5516956 and 5517175)
• Dimensions: Ø 134x105x18
• Static weight (including screws): 420 g
• Moment of inertia: 19 Kg/cm2

COMPATIBILITY NOTES

Please note: The following notes refer only to the vehicles listed below. These vehicle lists may not represent the complete compatibility list for the product.

For the installation, it is necessary to replace all the 6V bulbs with 12V bulbs, while maintaining the original wattage.

• VESPA ET3 Primavera 125 2 stroke

For installation, it is necessary to modify the ignition wiring provided in the kit and replace all 6V bulbs with 12V bulbs, while maintaining the original wattage.

• VESPA Primavera 125 2 stroke
