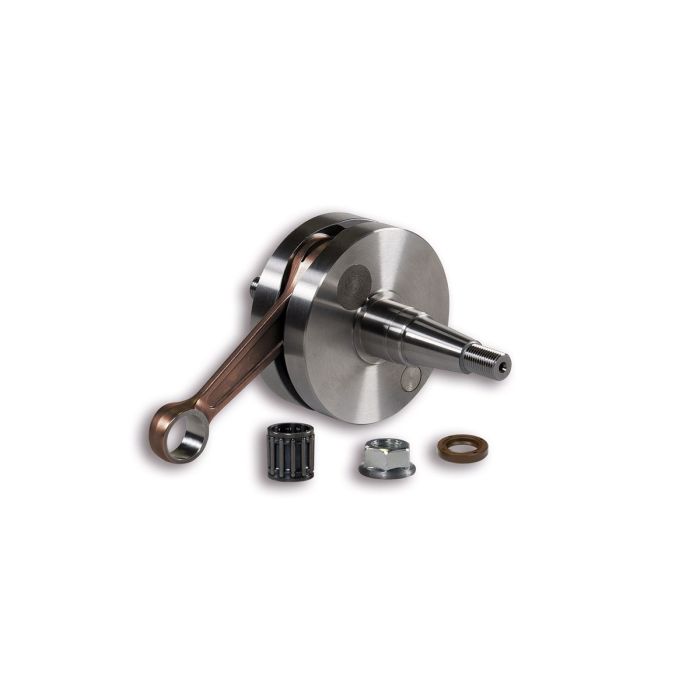

Malossi crankshaft 15mm pin 97mm rod 51mm stroke 20mm cone
for PIAGGIO APE FL, APE FL2, APE FL3 CROSS, APE FL3 EUROPA, APE FL3 NU, VESPA 125, VESPA ET3 VMB, VESPA PK ETS VMS1, VESPA PK N VMX7, VESPA PK S AUTOMATICA VAM1, VESPA PK S V8X5, VESPA PK V ...
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-20%
Special Price €404.20 Regular Price €505.15
The Malossi crankshaft is a delicate and important component for the Vespa engine, capable of managing the movements of the connecting rod and piston and regulating the intake through the phasing of the semi-shoulder.
Malossi crankshafts for Vespa are made of high-quality hardened steel and vacuum-cast, a material highly resistant to scratches. The connecting rod has a design that maximizes weight containment and ensures necessary rigidity. The threading of the transmission side shaft of the crankshafts has also been improved to increase strength. The position of the key has been revised to avoid compromising the threading and contribute to strength. The crankshafts are supplied with special, more resistant nuts.
Crankshafts with different connecting rod lengths are available for small frame Vespas, as well as full shoulder crankshafts for engines with rotary valve intake. Malossi full shoulder crankshafts are intended for Vespa engines modified to use a reed valve intake system. Optimal balance is guaranteed by tungsten inserts. The transmission side semi-shoulder features specially designed chamfers to facilitate the entry of fresh gases into the crankcase. The circular mass structure benefits from this new crankshaft and crankcase configuration, receiving the maximum possible pressure.
COMPATIBILITY NOTES
Please note: The following notes refer only to the vehicles listed below. These vehicle lists may not represent the complete compatibility list for the product.
For installation, it is necessary to bore the shaft seat to Ø 87 in the ignition side of the engine crankcase.
- VESPA ETS 125 2 stroke
- VESPA PK 125 2 stroke
- VESPA PK FL 125 2 stroke
- VESPA PK XL 125 2 stroke
Product compatible only with the Malossi bearing kit art. 6619313 (sold separately).
For installation, it is necessary to bore the shaft seat to Ø 87 in the ignition side of the engine crankcase.
- VESPA ET3 Primavera 125 2 stroke
- VESPA Primavera 125 2 stroke
Product compatible only with Malossi thermal units art. 3115829, 3117681
- PIAGGIO APE 50 2 stroke <-1989
- PIAGGIO APE FL 50 2 stroke 1989->1990
- PIAGGIO APE FL2 50 2 stroke 1990->1995
- PIAGGIO APE FL3 50 2 stroke 1996->1999
