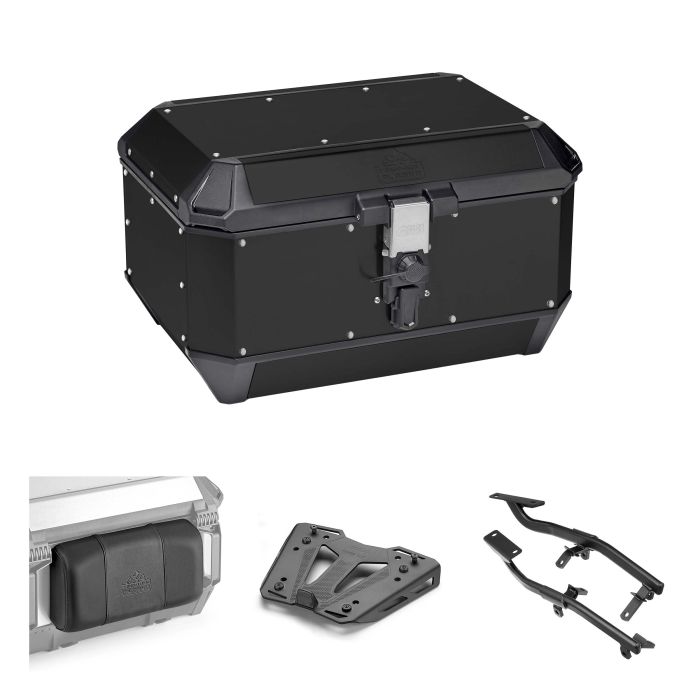

GIVI ALA56 ALASKA Topcase kit black for YAMAHA MT-09

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR2169 Monokey/Monolock rear rack without plate

SR2169

The GIVI SR2169 rear rack is a specific mount designed for the installation of MONOKEY and MONOLOCK top cases. This product has been developed to ensure a safe and functional transport solution for motorcycles, facilitating the addition of cargo space during trips.

The compatibility of the SR2169 rack is limited to the 2024 YAMAHA MT-09 model. This aspect is crucial to ensure precise mounting and optimal stability during use. It is important to note that the rack must be paired with specific support plates to function correctly. Compatible plates include the MONOKEY M5, M7, M8A, M8B, M9A, and M9B, as well as the MONOLOCK M5M and M6M plates. Additionally, the plate already included with the MONOLOCK top case or the EX2M aluminum side bag holder can be used.

It is noted that pairing with the M8A, M8B, M9A, and M9B plates comes with limitations. In particular, these combinations do not allow for the mounting of a stop light kit on the case and/or a remote-controlled opening device for the case. This information is crucial for users who wish to maximize the functionalities of their transport system.

GIVI M8B TREKKER RACK Plate for Monokey topcase black aluminum

M8B

The GIVI M8B TREKKER RACK plate, made of black painted aluminum, is compatible with Monokey top cases. Sturdy and elegant, it is designed for intensive use even on touring or adventure motorcycles, providing a solid and reliable attachment for the top case thanks to its robust structure and functional design.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.
