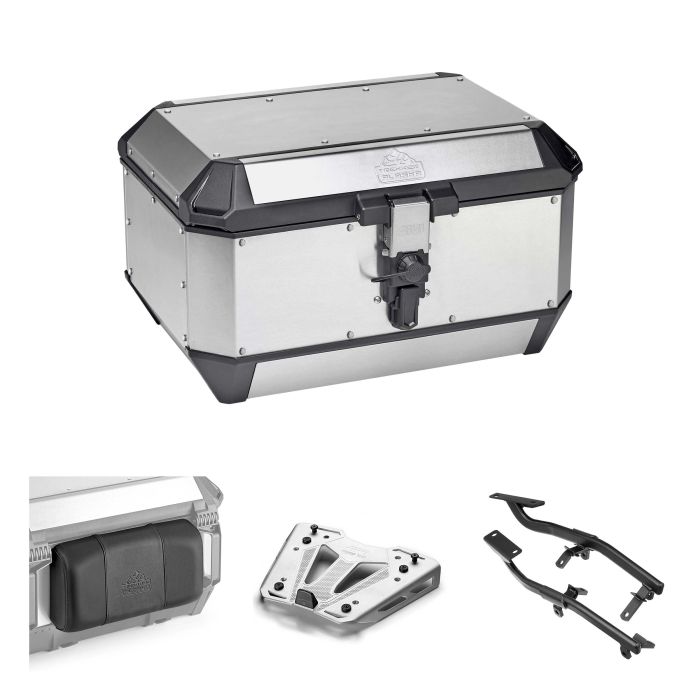

GIVI ALA56 ALASKA Topcase kit aluminum for SUZUKI GSX 1300R Hayabusa

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase aluminum 56L

ALA56A

The GIVI ALA56 TREKKER ALASKA top case is designed for motorcyclists who need a practical and robust transport system. Made of natural aluminum, it offers a capacity of 56 liters, sufficient for two modular helmets, and ensures resistance to weather conditions. The MONOKEY attachment system, with opening and release via a single lock, is compatible with all Monokey plates, except those with a contact for stop light kits.

The minimalist design of the top case is available in Natural and Black finishes, in line with the GIVI range. The WIRELEASE SYSTEM allows for release by rotating an external knob connected to a patented cable under the security lock. The attachment does not require rotation, further simplifying the mounting and usage operations.

Two integrated rear handles with the lid hinges facilitate opening operations, which occurs without retention cables and keeps the lid in position. Four strap pass-throughs are carved into the monolithic structure of the lid, combining functionality and aesthetics. The top case is prepared for the installation of an optional backrest, which can be installed without drilling or gluing.

The interior is equipped with grips to secure the load both to the bottom and to the lid. Water tightness is ensured by rivets with silicone-sealed gaskets. The maintenance-friendly design allows for easy replacement of elements such as the removal system, bottom, and stabilizers, ensuring long durability and repairability of the product.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI 541FZ Monokey/Monolock rear rack without plate

541FZ

The GIVI 541FZ rear rack is a mount specifically designed for the installation of a top case from the MONOKEY or MONOLOCK line. This accessory is compatible with the SUZUKI GSX 1300R Hayabusa model, produced from 2008 to 2016. Its main function is to provide a secure and stable base for mounting a top case, thus allowing for an increase in load capacity and greater convenience for travel.

To ensure a correct and functional installation, the rack must be paired with one of the specific GIVI plates. Available options include MONOKEY plates M5, M7, M8A, M8B, M9A, or M9B, or MONOLOCK plates M5M or M6M. It is important to note that pairing with plates M8A, M8B, M9A, and M9B does not allow for the installation of a stop light kit on the case, nor the installation of a remote-controlled opening device for the case.

The rack comes with a passenger grab handle, but the original handles of the motorcycle must be removed to proceed with the installation. Additionally, the maximum load allowed for the rack is 6 kg, which must be considered when using the top case. This specific load limitation is essential to ensure safety and stability while riding.

GIVI M8A TREKKER RACK Plate for Monokey topcase anodized aluminum

M8A

The GIVI M8A TREKKER RACK plate, made of anodized aluminum, is designed for mounting cases with Monokey attachment. Characterized by a robust and refined design, it offers a durable and lightweight solution, ideal for use in adventure or touring contexts, ensuring a secure attachment of the case.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.
