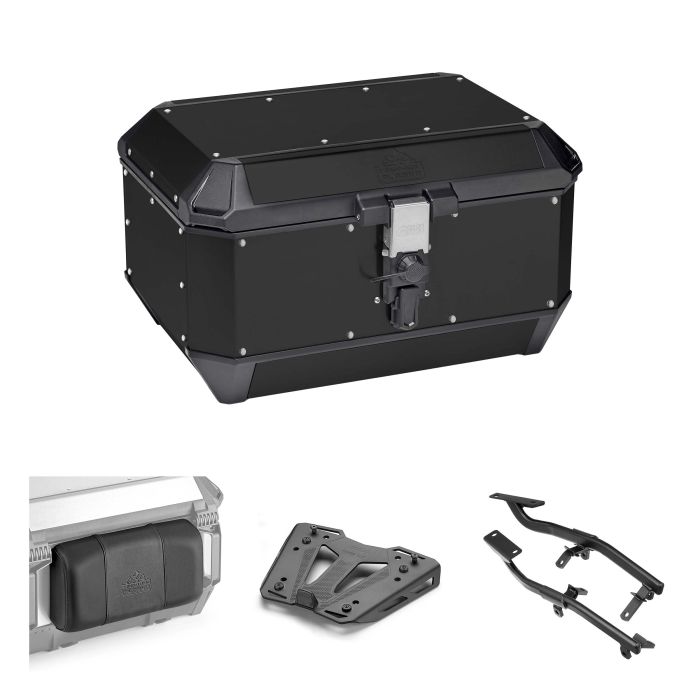

GIVI ALA56 ALASKA Topcase kit black for HONDA VFR 800 VTEC

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI 166FZ Monokey/Monolock rear rack without plate

166FZ

The GIVI 166FZ rear rack is a mount specifically designed for the installation of MONOKEY or MONOLOCK top cases. This accessory is compatible with the HONDA VFR 800 VTEC model produced between 2002 and 2011, offering a robust and functional solution for transporting additional loads.

For proper installation, it is necessary to pair the rack with a MONOKEY plate, available in various versions: M5, M7, M8A, M8B, M9A, or M9B. Alternatively, the MONOLOCK M5M or M6M plate can be used. It is important to note that some plate combinations, particularly M8A, M8B, M9A, and M9B, do not allow for the installation of a stop light kit on the case or a remote-controlled opening device for the case.

Additionally, the GIVI rack is not compatible with the original side case holder of the motorcycle, which further limits configuration options for users who wish to have a side loading system. This compatibility specificity must be carefully considered when choosing accessories to ensure proper installation and optimal use of the rack.

GIVI M8B TREKKER RACK Plate for Monokey topcase black aluminum

M8B

The GIVI M8B TREKKER RACK plate, made of black painted aluminum, is compatible with Monokey top cases. Sturdy and elegant, it is designed for intensive use even on touring or adventure motorcycles, providing a solid and reliable attachment for the top case thanks to its robust structure and functional design.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.
