GIVI TREKKER DOLOMITI aluminum black top case suitcase 46/36L for SUZUKI DL V STROM

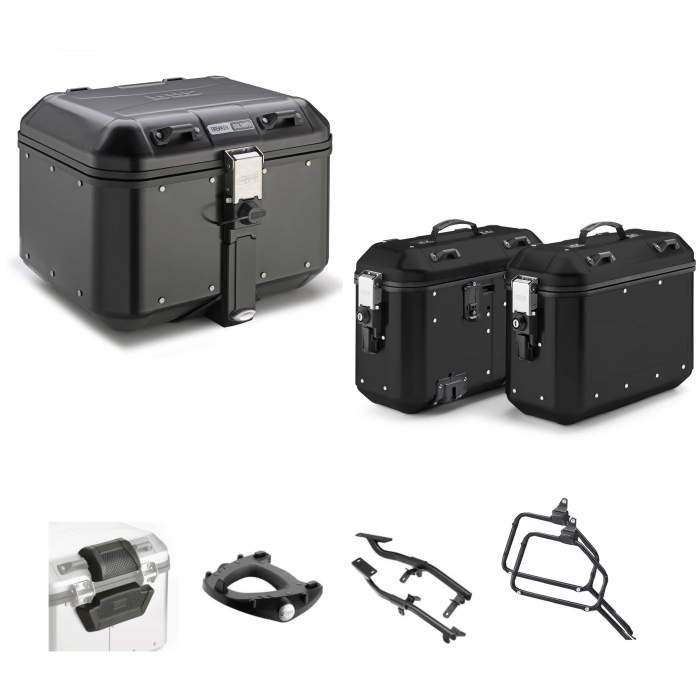

Kit GIVI composed of the following items:

GIVI DLM46 TREKKER DOLOMITI Monokey topcase Black Line 46L

DLM46B

The GIVI DLM46 TREKKER DOLOMITI top case is designed for rear mounting on motorcycles, with a capacity of 46 liters. This product is made entirely of painted black aluminum, which gives it an elegant and durable finish. Its structure features soft lines and a less angular design compared to other offerings in the TREKKER lightweight alloy line, making it particularly suitable for a wide range of motorcycles, especially for classic or café racer style models.

The mounting system of the top case is done via a MONOKEY plate, which ensures easy and secure installation on the bike. The internal capacity of the top case allows for the comfortable storage of two jet helmets or a single modular/full-face helmet, thus providing an excellent solution for transporting gear.

From a safety perspective, the top case is equipped with a Security Lock, which protects the contents from unauthorized access. Additionally, it features four upper nylon strap pass-throughs, useful for securing additional bags, increasing the product's versatility.

The GIVI DLM46 TREKKER DOLOMITI top case also offers customization options through a range of optional accessories. These include an elastic net to attach under the lid, a nylon luggage rack, a polyurethane backrest, a waterproof internal bag, and a trolley base, among others. It is important to note that the top case is not compatible with plates equipped with a stop light contact kit, an aspect to consider during installation.

FEATURES

• Dimensions: 340 x 460 x 410 mm
• Capacity: 46L / x2 jet helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI DLMK36B TREKKER DOLOMITI Pair of Monokey side cases Black Line 36L

DLMK36BPACK2

The Monokey GIVI DLMK36B TREKKER DOLOMITI side luggage pair offers a robust and functional transport solution for motorcyclists and travelers. With a capacity of 36 liters each, they are made of black painted aluminum to ensure strength and durability. The locking system features identical keys for both bags, with a third cylinder included for a possible top case, simplifying access and security.

The MONOKEY attachment system allows opening and detaching from the frame with the same key, making daily use simple and practical. The bags are compatible with tubular side luggage racks from the PL, PLR, PLO, and PLOR series, easily adapting to different motorcycle configurations.

Among the technical features, the WIRELEASE SYSTEM stands out, allowing detachment by rotating an external knob with a cable system, positioned under the Security Lock. The attachment, on the other hand, does not require any rotation, speeding up the mounting operations.

Finally, the bags integrate the HOLD IT EASY system, a hook mechanism that allows them to be tilted without completely detaching, facilitating loading even in the presence of a central top case. The system is not compatible with some Monokey frames and is provided detached, leaving the user the choice to install it according to their needs.

FEATURES

• Dimensions: 379 x 495 x 242 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SRA3112 Monokey rear rack anodized aluminum with plate

SRA3112

The GIVI SRA3112 rear rack is a mount specifically designed for the installation of MONOKEY luggage. This solution has been developed to ensure a robust and secure load capacity, with a maximum limit of 6 kg, making it suitable for transporting small-sized and moderately weighted items.

The compatibility of the rack is limited to specific motorcycle models, particularly the Suzuki DL 1000 V-Strom produced between 2017 and 2019 and the Suzuki DL 650 V-Strom from 2017 to 2024. This selection of models ensures that the rack integrates perfectly with the motorcycle structures, providing stability and safety during use.

It is important to note that the rack does not allow for the mounting of a stop light kit on the luggage, nor a remote-controlled opening device for it. These limitations should be considered when planning the use of the rack, as they may affect customization options and additional functionalities for transport.

Backrest for GIVI DLM30/46 TREKKER DOLOMITI topcase

E164

The GIVI E164 backrest is made in black with polyurethane padding, designed to provide comfort and support to the passenger. Its design perfectly integrates with the robust aesthetics of GIVI top cases.

This model is compatible with the GIVI DLM30 and DLM46 top cases from the TREKKER DOLOMITI series.

GIVI PLR3112 Monokey side frames rapid removal

PLR3112

The Monokey side frames GIVI PLR3112 are designed to provide a quick-release side luggage system, specifically compatible with the MONOKEY and RETRO FIT luggage lines. This feature allows for easy and fast installation and removal of the luggage, making the system particularly practical for users who require greater flexibility during their travels.

These frames are compatible with the SUZUKI DL 650 V-Strom model, from the years 2017 to 2024. This specific compatibility ensures a precise and secure fit to the vehicle, ensuring that the luggage is mounted in a stable and secure manner during riding. It is important to note that the PLR3112 frames are not compatible with the GRT709 and GRT720 side bags, which should be considered when choosing the luggage to use with this system.
