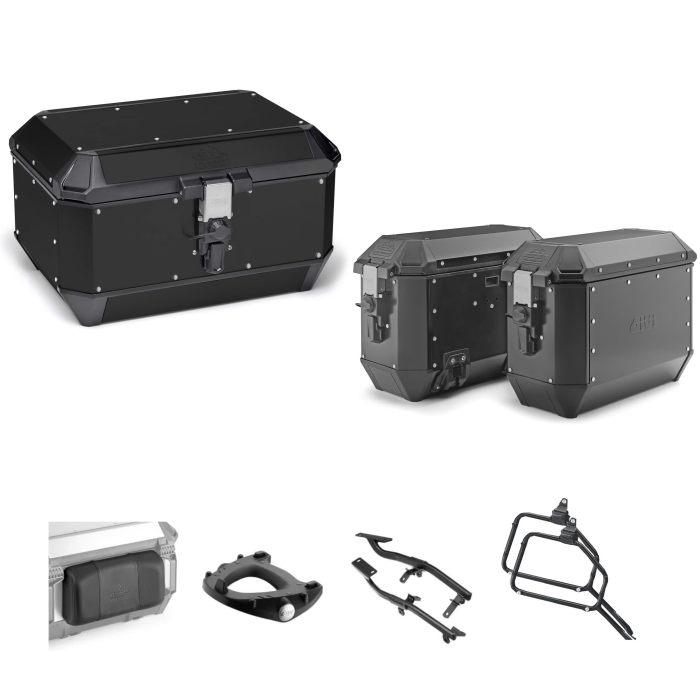

GIVI TREKKER ALASKA Aluminum Black Top Case Luggage 56/36L for SUZUKI DL V STROM

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36B TREKKER ALASKA Pair of Monokey side cases Black Line 36L

ALA36BPACK2

The Monokey GIVI ALA36B TREKKER ALASKA side luggage pair, with a capacity of 36 liters each, is made of black painted aluminum, featuring a modern and durable design. Supplied with matching keys and a third key for a possible top case, they offer ease of use and security in accessing the load.

Compatible with GIVI tubular side luggage racks from the PL, PLR, PLO, and PLOR series, the bags utilize the MONOKEY attachment system for quick opening and release. For installation on PL and PLR frames, two spacers are included, to be placed between the frame and the mounting points.

The bags are constructed with natural aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap pass-throughs, materials that ensure resistance and durability even in intensive use. The WIRELEASE system allows for release via an external knob with a patented cable, without the need for rotation for attachment.

Among the additional features, the HOLD IT EASY SYSTEM stands out, allowing the bag to tilt without detaching, facilitating loading even in the presence of a central top case. The lid opens completely without retaining cables and integrates an ergonomic handle and four strap pass-throughs made with plane changes for a functional and elegant aesthetic.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SRA3112 Monokey rear rack anodized aluminum with plate

SRA3112

The GIVI SRA3112 rear rack is a mount specifically designed for the installation of MONOKEY luggage. This solution has been developed to ensure a robust and secure load capacity, with a maximum limit of 6 kg, making it suitable for transporting small-sized and moderately weighted items.

The compatibility of the rack is limited to specific motorcycle models, particularly the Suzuki DL 1000 V-Strom produced between 2017 and 2019 and the Suzuki DL 650 V-Strom from 2017 to 2024. This selection of models ensures that the rack integrates perfectly with the motorcycle structures, providing stability and safety during use.

It is important to note that the rack does not allow for the mounting of a stop light kit on the luggage, nor a remote-controlled opening device for it. These limitations should be considered when planning the use of the rack, as they may affect customization options and additional functionalities for transport.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PLR3112 Monokey side frames rapid removal

PLR3112

The Monokey side frames GIVI PLR3112 are designed to provide a quick-release side luggage system, specifically compatible with the MONOKEY and RETRO FIT luggage lines. This feature allows for easy and fast installation and removal of the luggage, making the system particularly practical for users who require greater flexibility during their travels.

These frames are compatible with the SUZUKI DL 650 V-Strom model, from the years 2017 to 2024. This specific compatibility ensures a precise and secure fit to the vehicle, ensuring that the luggage is mounted in a stable and secure manner during riding. It is important to note that the PLR3112 frames are not compatible with the GRT709 and GRT720 side bags, which should be considered when choosing the luggage to use with this system.
