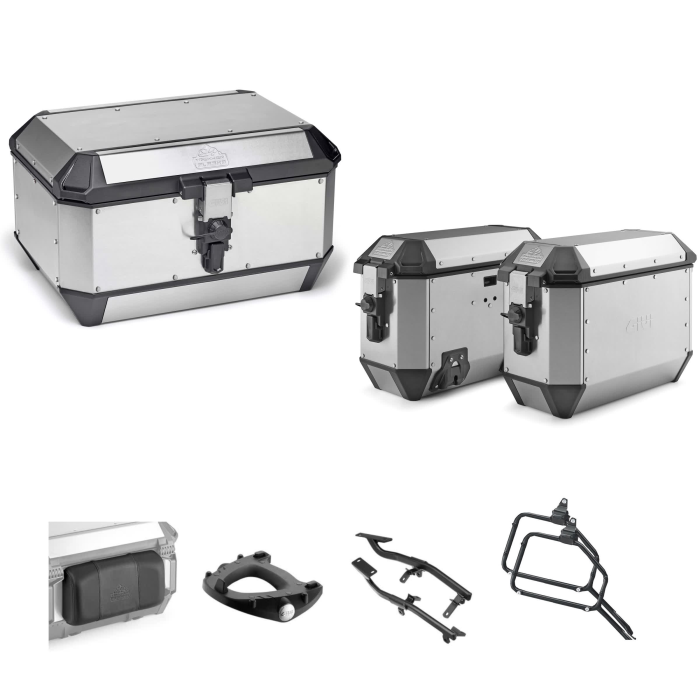

GIVI TREKKER ALASKA Grey Aluminum Luggage Case Kit 56/36L for SUZUKI DL V STROM

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase aluminum 56L

ALA56A

The GIVI ALA56 TREKKER ALASKA top case is designed for motorcyclists who need a practical and robust transport system. Made of natural aluminum, it offers a capacity of 56 liters, sufficient for two modular helmets, and ensures resistance to weather conditions. The MONOKEY attachment system, with opening and release via a single lock, is compatible with all Monokey plates, except those with a contact for stop light kits.

The minimalist design of the top case is available in Natural and Black finishes, in line with the GIVI range. The WIRELEASE SYSTEM allows for release by rotating an external knob connected to a patented cable under the security lock. The attachment does not require rotation, further simplifying the mounting and usage operations.

Two integrated rear handles with the lid hinges facilitate opening operations, which occurs without retention cables and keeps the lid in position. Four strap pass-throughs are carved into the monolithic structure of the lid, combining functionality and aesthetics. The top case is prepared for the installation of an optional backrest, which can be installed without drilling or gluing.

The interior is equipped with grips to secure the load both to the bottom and to the lid. Water tightness is ensured by rivets with silicone-sealed gaskets. The maintenance-friendly design allows for easy replacement of elements such as the removal system, bottom, and stabilizers, ensuring long durability and repairability of the product.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36A TREKKER ALASKA Pair of Monokey side cases aluminum 36L

ALA36APACK2

The Monokey side cases GIVI ALA36A TREKKER ALASKA, with a capacity of 36 liters each, are made of natural aluminum to ensure strength and durability while maintaining a clean and functional aesthetic. The cases come with matching keys and include a third cylinder for optional mounting on a top case, ensuring uniformity in the locking system.

The MONOKEY system allows for quick opening and release with the same key, making it practical and immediate to use. The cases are compatible with GIVI tubular side racks from the PL, PLR, PLO, and PLOR series. For installation on PL and PLR frames, two spacers are provided to place between the frame and the rubber bumpers.

Constructed with high-quality materials, such as aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap passers, they ensure solidity and impact resistance. The patented WIRELEASE system allows the cases to be detached by rotating an external knob under the Security Lock, without the need for rotations for attachment.

The HOLD IT EASY system allows the case to be tilted without fully detaching it, facilitating loading even in the presence of a central top case. The lid opens fully without retention cables and features an ergonomic handle integrated into the hinge. Four strap passers with plane changes complete the design, combining functionality and style.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SRA3112 Monokey rear rack anodized aluminum with plate

SRA3112

The GIVI SRA3112 rear rack is a mount specifically designed for the installation of MONOKEY luggage. This solution has been developed to ensure a robust and secure load capacity, with a maximum limit of 6 kg, making it suitable for transporting small-sized and moderately weighted items.

The compatibility of the rack is limited to specific motorcycle models, particularly the Suzuki DL 1000 V-Strom produced between 2017 and 2019 and the Suzuki DL 650 V-Strom from 2017 to 2024. This selection of models ensures that the rack integrates perfectly with the motorcycle structures, providing stability and safety during use.

It is important to note that the rack does not allow for the mounting of a stop light kit on the luggage, nor a remote-controlled opening device for it. These limitations should be considered when planning the use of the rack, as they may affect customization options and additional functionalities for transport.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PLR3112 Monokey side frames rapid removal

PLR3112

The Monokey side frames GIVI PLR3112 are designed to provide a quick-release side luggage system, specifically compatible with the MONOKEY and RETRO FIT luggage lines. This feature allows for easy and fast installation and removal of the luggage, making the system particularly practical for users who require greater flexibility during their travels.

These frames are compatible with the SUZUKI DL 650 V-Strom model, from the years 2017 to 2024. This specific compatibility ensures a precise and secure fit to the vehicle, ensuring that the luggage is mounted in a stable and secure manner during riding. It is important to note that the PLR3112 frames are not compatible with the GRT709 and GRT720 side bags, which should be considered when choosing the luggage to use with this system.
