GIVI TREKKER ALASKA black aluminum luggage top case kit 56/36L for YAMAHA

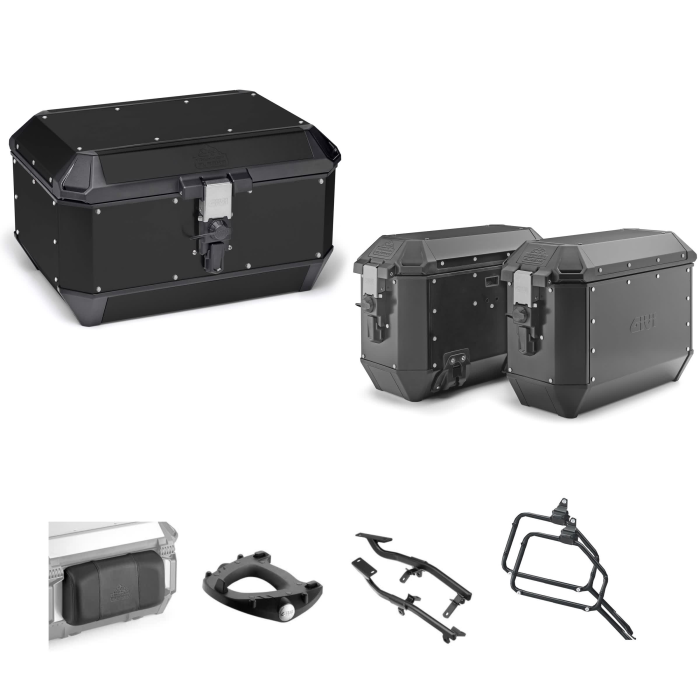

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36B TREKKER ALASKA Pair of Monokey side cases Black Line 36L

ALA36BPACK2

The Monokey GIVI ALA36B TREKKER ALASKA side luggage pair, with a capacity of 36 liters each, is made of black painted aluminum, featuring a modern and durable design. Supplied with matching keys and a third key for a possible top case, they offer ease of use and security in accessing the load.

Compatible with GIVI tubular side luggage racks from the PL, PLR, PLO, and PLOR series, the bags utilize the MONOKEY attachment system for quick opening and release. For installation on PL and PLR frames, two spacers are included, to be placed between the frame and the mounting points.

The bags are constructed with natural aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap pass-throughs, materials that ensure resistance and durability even in intensive use. The WIRELEASE system allows for release via an external knob with a patented cable, without the need for rotation for attachment.

Among the additional features, the HOLD IT EASY SYSTEM stands out, allowing the bag to tilt without detaching, facilitating loading even in the presence of a central top case. The lid opens completely without retaining cables and integrates an ergonomic handle and four strap pass-throughs made with plane changes for a functional and elegant aesthetic.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SRA2159 Monokey rear rack anodized aluminum with plate

SRA2159

The GIVI SRA2159 rear rack is a mount specifically designed for the installation of MONOKEY line top cases. The black finish gives the product an elegant and discreet appearance, suitable for various motorcycle configurations.

This rack is compatible with YAMAHA Tracer 9, Tracer 9 GT, and Tracer 9 GT+ models produced between 2021 and 2024. Its specific design ensures easy and secure installation on these models, ensuring perfect integration with the motorcycle's structure.

It is important to note that the rack has a maximum load of 5 kg, which limits the weight of the items that can be transported. Additionally, it should be noted that it is not possible to mount a stop light kit on the case or a remote opening device for the case. These limitations must be considered when planning the use of the rack to ensure safe use in accordance with the product specifications.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PLO2159MK PL ONE-FIT Monokey side frames

PLO2159MK

The Monokey side frames GIVI PLO2159MK PL ONE-FIT are specifically designed for the installation of MONOKEY cases on motorcycles. These side carriers provide a robust and functional solution for transporting luggage, ensuring optimal compatibility with selected motorcycle models.

The compatibility of this product is limited to YAMAHA Tracer 9, Tracer 9 GT, and Tracer 9 GT+ models produced between 2021 and 2024. This specificity ensures that the frame integrates perfectly with the motorcycle's structure, maintaining a balance between aesthetics and functionality.

The side frames are made with 18 mm diameter tubes, contributing to their strength and stability during use. For those seeking greater practicality, the frame can be paired with the 07RKIT kit, which allows for conversion into a quick-release luggage carrier. This option is particularly useful for motorcyclists who need to frequently remove the cases, thus offering greater flexibility in the daily use of the motorcycle.
