GIVI TREKKER ALASKA Aluminum Black Top Case Luggage 56/36L for CF MOTO

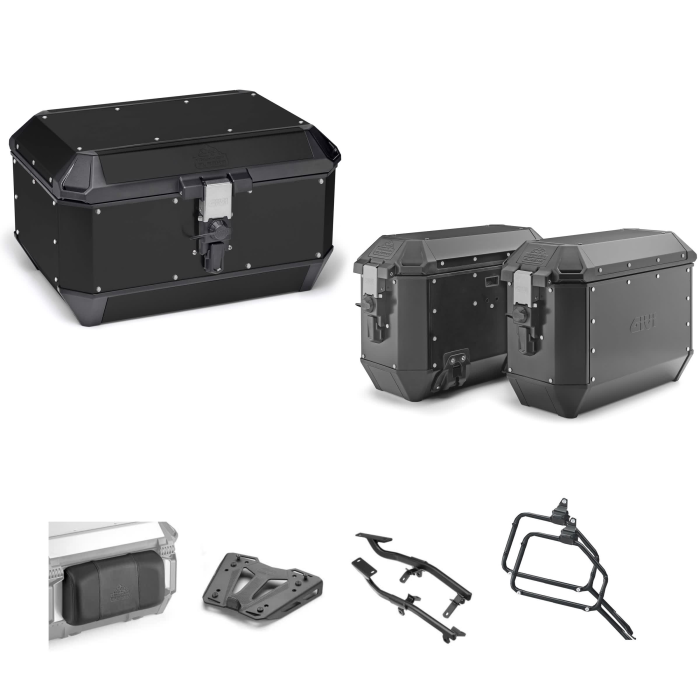

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36B TREKKER ALASKA Pair of Monokey side cases Black Line 36L

ALA36BPACK2

The Monokey GIVI ALA36B TREKKER ALASKA side luggage pair, with a capacity of 36 liters each, is made of black painted aluminum, featuring a modern and durable design. Supplied with matching keys and a third key for a possible top case, they offer ease of use and security in accessing the load.

Compatible with GIVI tubular side luggage racks from the PL, PLR, PLO, and PLOR series, the bags utilize the MONOKEY attachment system for quick opening and release. For installation on PL and PLR frames, two spacers are included, to be placed between the frame and the mounting points.

The bags are constructed with natural aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap pass-throughs, materials that ensure resistance and durability even in intensive use. The WIRELEASE system allows for release via an external knob with a patented cable, without the need for rotation for attachment.

Among the additional features, the HOLD IT EASY SYSTEM stands out, allowing the bag to tilt without detaching, facilitating loading even in the presence of a central top case. The lid opens completely without retaining cables and integrates an ergonomic handle and four strap pass-throughs made with plane changes for a functional and elegant aesthetic.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR9225 Monokey/Monolock rear rack without plate

SR9225

The GIVI SR9225 rear rack is a mount specifically designed for the installation of MONOKEY or MONOLOCK top cases. This accessory is compatible with the CFMOTO 800 MT model, produced between 2022 and 2024, ensuring a safe and functional transport solution for motorcyclists.

For proper installation, the rack must be paired with one of the specific plates: the MONOKEY plates M5, M7, M8A, M8B, M9A, or M9B, or the MONOLOCK plates M5M or M6M. It is important to note that pairing with plates M8A, M8B, M9A, and M9B has limitations, as it does not allow for the installation of a stop light kit on the case and/or a remote-controlled opening device for the case.

The GIVI rack therefore represents a strategic choice for those looking to expand the load capacity of their motorcycle while maintaining a high standard of compatibility and functionality.

GIVI M8B TREKKER RACK Plate for Monokey topcase black aluminum

M8B

The GIVI M8B TREKKER RACK plate, made of black painted aluminum, is compatible with Monokey top cases. Sturdy and elegant, it is designed for intensive use even on touring or adventure motorcycles, providing a solid and reliable attachment for the top case thanks to its robust structure and functional design.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PL9225 Monokey side frames

PL9225

The Monokey GIVI PL9225 side frames are specifically designed for the installation of Monokey system luggage, offering a robust and functional solution for transporting luggage on motorcycles. These frames are made to ensure perfect integration with the design and structure of the motorcycle, ensuring stability and safety during use.

The compatibility of the PL9225 side frames is limited to the CFMOTO 800 MT model, produced between 2022 and 2024. This specificity ensures that the mounting and use of the frames are optimized for this model, avoiding adaptation or installation issues. The frames mount directly onto the side luggage rack already present as standard on the motorcycle, simplifying the installation process and reducing the number of necessary components.

It is important to note that the use of the Monokey GIVI PL9225 side frames is strictly linked to the Monokey luggage system, which implies that only luggage compatible with this system can be used in conjunction with the frames. This ensures a secure and reliable mounting interface, optimizing the user experience for the motorcyclist. The design of these frames takes into account load requirements and riding dynamics, helping to maintain proper balance during transport.
