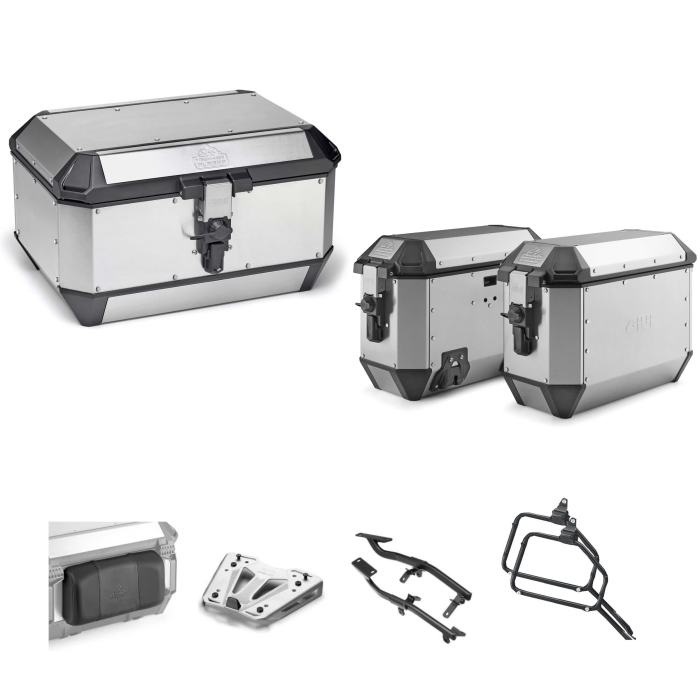

GIVI TREKKER ALASKA Aluminum Top Case 56/36L for MOTO GUZZI V85 TT

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase aluminum 56L

ALA56A

The GIVI ALA56 TREKKER ALASKA top case is designed for motorcyclists who need a practical and robust transport system. Made of natural aluminum, it offers a capacity of 56 liters, sufficient for two modular helmets, and ensures resistance to weather conditions. The MONOKEY attachment system, with opening and release via a single lock, is compatible with all Monokey plates, except those with a contact for stop light kits.

The minimalist design of the top case is available in Natural and Black finishes, in line with the GIVI range. The WIRELEASE SYSTEM allows for release by rotating an external knob connected to a patented cable under the security lock. The attachment does not require rotation, further simplifying the mounting and usage operations.

Two integrated rear handles with the lid hinges facilitate opening operations, which occurs without retention cables and keeps the lid in position. Four strap pass-throughs are carved into the monolithic structure of the lid, combining functionality and aesthetics. The top case is prepared for the installation of an optional backrest, which can be installed without drilling or gluing.

The interior is equipped with grips to secure the load both to the bottom and to the lid. Water tightness is ensured by rivets with silicone-sealed gaskets. The maintenance-friendly design allows for easy replacement of elements such as the removal system, bottom, and stabilizers, ensuring long durability and repairability of the product.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36A TREKKER ALASKA Pair of Monokey side cases aluminum 36L

ALA36APACK2

The Monokey side cases GIVI ALA36A TREKKER ALASKA, with a capacity of 36 liters each, are made of natural aluminum to ensure strength and durability while maintaining a clean and functional aesthetic. The cases come with matching keys and include a third cylinder for optional mounting on a top case, ensuring uniformity in the locking system.

The MONOKEY system allows for quick opening and release with the same key, making it practical and immediate to use. The cases are compatible with GIVI tubular side racks from the PL, PLR, PLO, and PLOR series. For installation on PL and PLR frames, two spacers are provided to place between the frame and the rubber bumpers.

Constructed with high-quality materials, such as aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap passers, they ensure solidity and impact resistance. The patented WIRELEASE system allows the cases to be detached by rotating an external knob under the Security Lock, without the need for rotations for attachment.

The HOLD IT EASY system allows the case to be tilted without fully detaching it, facilitating loading even in the presence of a central top case. The lid opens fully without retention cables and features an ergonomic handle integrated into the hinge. Four strap passers with plane changes complete the design, combining functionality and style.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR8203 Monokey/Monolock rear rack without plate

SR8203

The GIVI SR8203 rear rack is a mount specifically designed for the installation of MONOKEY or MONOLOCK top cases. This component is compatible with the MOTO GUZZI V85 TT model, produced from 2019 to 2023, ensuring a precise and secure fit for this vehicle.

For proper installation of the rack, it must be paired with one of the specific GIVI plates. Compatible options include MONOKEY plates M5, M7, M8A, M8B, M9A, and M9B, as well as MONOLOCK plates M5M and M6M. It is important to note that pairing with plates M8A, M8B, M9A, and M9B does not allow for the installation of a stop light kit on the case or a remote opening device for the case.

The rack is designed to support a maximum load of 6 kg, making it suitable for transporting lightweight items and accessories. This feature makes it a useful component for motorcyclists who need additional cargo space without compromising the stability and safety of the vehicle.

GIVI M8A TREKKER RACK Plate for Monokey topcase anodized aluminum

M8A

The GIVI M8A TREKKER RACK plate, made of anodized aluminum, is designed for mounting cases with Monokey attachment. Characterized by a robust and refined design, it offers a durable and lightweight solution, ideal for use in adventure or touring contexts, ensuring a secure attachment of the case.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PLOR8203MK PL ONE-FIT Monokey side frames rapid removal

PLOR8203MK

The Monokey side frames GIVI PLOR8203MK PL ONE-FIT are designed to provide a specific and functional side luggage rack solution, characterized by a quick-release system. This product is compatible with MONOKEY cases, allowing for easy mounting and dismounting of the cases themselves, ensuring practicality in daily use.

The compatibility of these frames is limited to the MOTO GUZZI V85 TT model, produced between 2019 and 2023. This specificity ensures optimal fitting and perfect integration with the motorcycle's structure, maintaining the aesthetics and functionality of the vehicle.

A relevant technical aspect of the frames is their design, which features a 18 mm diameter tube. This characteristic provides robustness and stability, ensuring that the cases are securely supported during riding. The construction of the frames is designed to withstand the stresses typical of motorcycle use, ensuring a long lifespan over time.
