GIVI TREKKER ALASKA Black Aluminum Top Case Luggage 44/36L for TRIUMPH TIGER

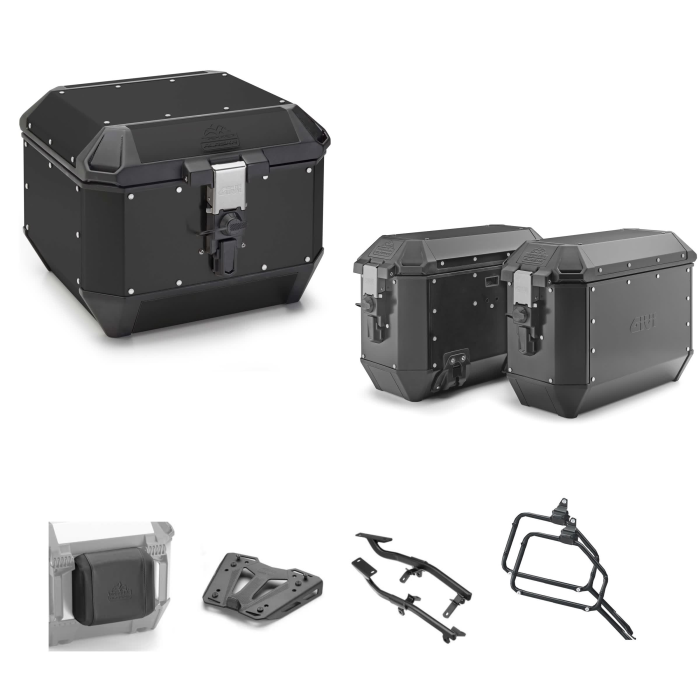

Kit GIVI composed of the following items:

GIVI ALA44 TREKKER ALASKA Monokey topcase Black Line 44L

ALA44B

The GIVI ALA44 TREKKER ALASKA top case is an accessory designed for motorcyclists who need a practical and functional transport system. Made of black painted aluminum, this top case has a capacity of 44 liters, sufficient to hold a modular helmet. Its structure features a clean and minimal design that harmoniously integrates with the rest of the GIVI product range, aiming to ensure practical and intuitive use.

The MONOKEY attachment system is one of the main features of the ALA44 top case. This system allows for opening and detaching from the plate using a single lock, facilitating the operation with the same key. The top case is compatible with all Monokey plates, except those equipped with a stop light kit contact. Additionally, the WIRELEASE SYSTEM allows for detaching the case from the plate by rotating an external knob located directly under the Security Lock, making the removal process simple and quick.

To enhance the user experience, the ALA44 top case is equipped with two handles located on the rear side, which integrate the robust hinges of the lid. This solution allows for a greater opening of the lid itself, eliminating the need for retention cables. Once opened, the lid stays in position, facilitating loading and unloading operations. The structure of the top case includes four strap passers, created with gradual changes in plane, giving it an elegant and functional appearance.

The ALA44 top case is prepared for the attachment of a backrest, available as an option, using screws without the need to drill or glue components. To ensure water tightness even in the most adverse riding conditions, the rivets are equipped with seals and sealed with silicone. Inside, the structure features a series of integrated grips in the load-bearing structures, allowing for securing the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 331 x 464 x 421 mm
• Capacity: 44L / x1 modular helmet
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36B TREKKER ALASKA Pair of Monokey side cases Black Line 36L

ALA36BPACK2

The Monokey GIVI ALA36B TREKKER ALASKA side luggage pair, with a capacity of 36 liters each, is made of black painted aluminum, featuring a modern and durable design. Supplied with matching keys and a third key for a possible top case, they offer ease of use and security in accessing the load.

Compatible with GIVI tubular side luggage racks from the PL, PLR, PLO, and PLOR series, the bags utilize the MONOKEY attachment system for quick opening and release. For installation on PL and PLR frames, two spacers are included, to be placed between the frame and the mounting points.

The bags are constructed with natural aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap pass-throughs, materials that ensure resistance and durability even in intensive use. The WIRELEASE system allows for release via an external knob with a patented cable, without the need for rotation for attachment.

Among the additional features, the HOLD IT EASY SYSTEM stands out, allowing the bag to tilt without detaching, facilitating loading even in the presence of a central top case. The lid opens completely without retaining cables and integrates an ergonomic handle and four strap pass-throughs made with plane changes for a functional and elegant aesthetic.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR6415 Monokey/Monolock rear rack without plate

SR6415

The GIVI SR6415 rear rack is a mount specifically designed for the installation of MONOKEY or MONOLOCK top cases. This component is essential to ensure a proper and safe integration of load systems on the motorcycle, facilitating the transport of items during trips or daily use.

The compatibility of the rack is limited to TRIUMPH Tiger 900 models, covering versions produced from 2020 to 2023 and those from 2024 to 2025. This makes it a versatile accessory for owners of these motorcycles, ensuring adequate adaptability and functionality.

For optimal installation, it is necessary to pair the rack with one of the specific plates: the MONOKEY plates M5, M7, M8A, M8B, M9A, or M9B, or with the MONOLOCK plates M5M or M6M. It is important to note that pairing with plates M8A, M8B, M9A, and M9B has a limitation: it does not allow the mounting of a stop light kit on the case and/or a remote-controlled opening device for the case. This information is crucial for users who wish to maximize the functionalities of their load system, as the choice of plate affects the available options for lighting and access to the case.

GIVI M8B TREKKER RACK Plate for Monokey topcase black aluminum

M8B

The GIVI M8B TREKKER RACK plate, made of black painted aluminum, is compatible with Monokey top cases. Sturdy and elegant, it is designed for intensive use even on touring or adventure motorcycles, providing a solid and reliable attachment for the top case thanks to its robust structure and functional design.

Backrest for GIVI ALA44 TREKKER ALASKA topcase

E233S

The GIVI E233S backrest is made in black with foam padding and a fabric cover, enhanced by the ALASKA logo. Designed to provide comfort and support to the passenger, it perfectly integrates with the design of the ALASKA line of top cases.

This model is compatible with the GIVI ALA44 top cases from the TREKKER ALASKA series.

GIVI PLO6425MK PL ONE-FIT Monokey side frames

PLO6425MK

The Monokey side frames GIVI PLO6425MK PL ONE-FIT are specifically designed for the installation of MONOKEY cases on motorcycles. This side luggage rack system offers a robust and functional solution for transporting luggage, ensuring adequate stability and safety during use.

The product compatibility is limited to TRIUMPH Tiger 900 models, covering versions from 2020 to 2023 and those planned for 2024 and 2025. This specificity allows the side frame system to be adapted to a defined range of motorcycles, ensuring precise mounting without compromising on quality and safety.

The frame features a tubular design with a diameter of 18 mm, a characteristic that contributes to the robustness of the system and its ability to support significant loads. It is important to note that to transform the frame into a quick-release luggage rack, the product must be paired with accessory 01RKIT. This quick-release option offers greater flexibility for users who want a versatile transport system, allowing for easy removal of the cases when they are not needed.
