GIVI TREKKER ALASKA Aluminum Black Top Case Luggage 56/36L for BMW R GS

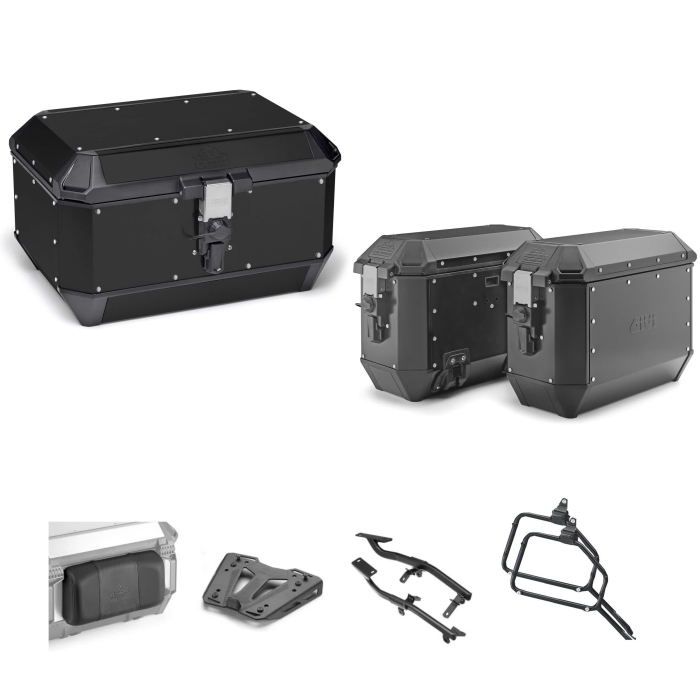

Kit GIVI composed of the following items:

GIVI ALA56 TREKKER ALASKA Monokey topcase Black Line 56L

ALA56B

The GIVI ALA56 TREKKER ALASKA top case is an accessory designed for motorcycles, made of black painted aluminum with a capacity of 56 liters. This ample capacity allows for the comfortable storage of two modular helmets, making it ideal for long trips or daily use. The top case is equipped with the MONOKEY attachment system, a widely used locking system that allows for the opening and release from the plate via a single lock, using the same key.

The GIVI ALA56 is compatible with all MONOKEY plates, except those that include the contact for the stop light kit. Its aesthetics are characterized by clean and minimal lines, which harmoniously integrate with the rest of the GIVI product range, emphasizing practicality. The WIRELEASE system allows for quick release of the bags from the plate by rotating an external knob, equipped with a patented cable system, located directly under the security lock. For attaching the bag, rotating the knob is not necessary, further simplifying the operation.

To facilitate loading and unloading operations, the top case is equipped with two handles located on the rear side, which also integrate the robust hinges of the lid. This design allows for a greater opening of the lid, keeping it in position without the aid of retaining cables. Additionally, the top case features four integrated strap pass-throughs, carved into the monolithic structure of the lid, giving it an elegant and practical appearance.

The GIVI ALA56 is designed for the attachment of a backrest, available as an option, using screws, without the need to drill or glue components. The water resistance is ensured by rivets equipped with seals and sealed with silicone, providing effective protection even in the harshest riding conditions. Inside, the top case is designed with a series of integrated grips in the load-bearing structures, allowing for the securing of the load both to the lid and to the bottom of the case.

FEATURES

• Dimensions: 328 x 559 x 463 mm
• Capacity: 56L / x2 modular helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI ALA36B TREKKER ALASKA Pair of Monokey side cases Black Line 36L

ALA36BPACK2

The Monokey GIVI ALA36B TREKKER ALASKA side luggage pair, with a capacity of 36 liters each, is made of black painted aluminum, featuring a modern and durable design. Supplied with matching keys and a third key for a possible top case, they offer ease of use and security in accessing the load.

Compatible with GIVI tubular side luggage racks from the PL, PLR, PLO, and PLOR series, the bags utilize the MONOKEY attachment system for quick opening and release. For installation on PL and PLR frames, two spacers are included, to be placed between the frame and the mounting points.

The bags are constructed with natural aluminum, stainless steel for the hinges, and reinforced technopolymer for profiles and strap pass-throughs, materials that ensure resistance and durability even in intensive use. The WIRELEASE system allows for release via an external knob with a patented cable, without the need for rotation for attachment.

Among the additional features, the HOLD IT EASY SYSTEM stands out, allowing the bag to tilt without detaching, facilitating loading even in the presence of a central top case. The lid opens completely without retaining cables and integrates an ergonomic handle and four strap pass-throughs made with plane changes for a functional and elegant aesthetic.

FEATURES

• Dimensions: 374 x 562 x 260 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR5143 Monokey/Monolock rear rack without plate

SR5143

The GIVI SR5143 rear rack is a mount specifically designed for the installation of a top case from the MONOKEY or MONOLOCK line. This component has been made to ensure optimal compatibility with the BMW R 1300 GS model, year 2024. Its design takes into account practical usage needs and functionality, allowing for the safe and stable transport of additional loads.

The installation of the GIVI rack occurs exclusively as a replacement for the motorcycle's original rack or handle. It is important to note that the rack can also be mounted in the presence of the original side cases, thus offering greater versatility in load organization. For proper use, it is necessary to pair the rack with one of the specific plates, including MONOKEY plates M5, M8A, M8B, M9A, or M9B, or MONOLOCK plates M5M or M6M. Alternatively, the EX2M aluminum bag holder can be used.

It is essential to consider some limitations regarding the pairing with plates M8A, M8B, M9A, and M9B. The use of these plates does not allow for the mounting of a stop light kit on the case and/or a remote-controlled opening device for the case, which may affect the usage choices for users who require such functionalities.

GIVI M8B TREKKER RACK Plate for Monokey topcase black aluminum

M8B

The GIVI M8B TREKKER RACK plate, made of black painted aluminum, is compatible with Monokey top cases. Sturdy and elegant, it is designed for intensive use even on touring or adventure motorcycles, providing a solid and reliable attachment for the top case thanks to its robust structure and functional design.

Backrest for GIVI ALA56 TREKKER ALASKA topcase

E208S

The GIVI E208S backrest is made in black with foam padding and a fabric cover, customized with the ALASKA logo. It offers a high level of comfort for the passenger, with a refined design intended to match the line of dedicated top cases.

This model is compatible with the GIVI ALA56 top cases from the TREKKER ALASKA series.

GIVI PLO5143MK PL ONE-FIT Monokey side frames

PLO5143MK

The Monokey side frames GIVI PLO5143MK PL ONE-FIT are designed to provide a support solution for specific side cases, compatible with the MONOKEY system. These frames have been developed to ensure a secure and stable installation while maintaining the functionality and aesthetics of the vehicle.

The main compatibility of this product is with the BMW R 1300 GS model, year 2024. It is important to note that the frame can also be mounted in the presence of the original side case mounting system of the motorcycle, which offers greater versatility for users who wish to retain the original loading options without compromising functionality.

The frames are made with a 18 mm diameter tubular, which provides strength and durability, ensuring an adequate structure for transporting loads. For those who require greater practicality, it is possible to pair the frame with the 13RKIT, which allows for transformation into a quick-release luggage rack. This feature is particularly useful for users who desire a quick mounting and dismounting system for the cases, facilitating the daily use of the motorcycle.
