GIVI TREKKER DOLOMITI aluminum gray luggage case kit 46/36L for BMW

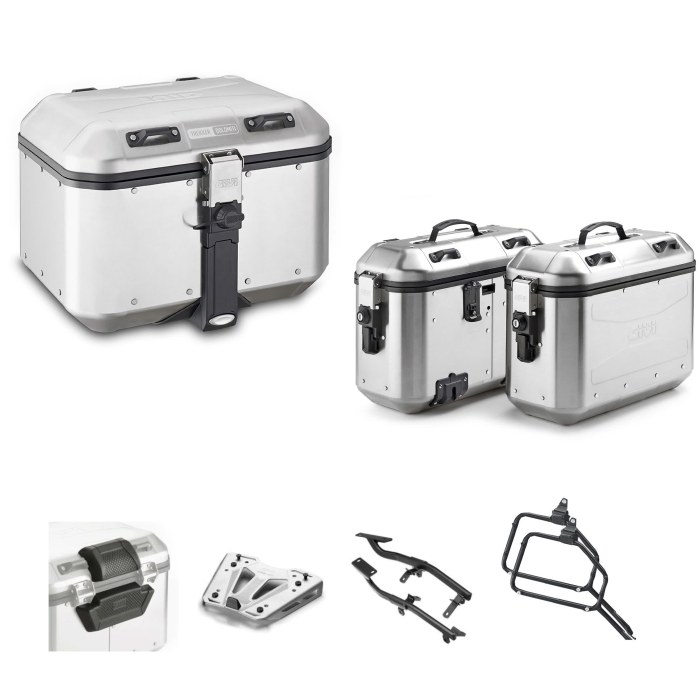

Kit GIVI composed of the following items:

GIVI DLM46 TREKKER DOLOMITI Monokey topcase aluminum 46L

DLM46A

The GIVI DLM46 TREKKER DOLOMITI top case is designed for rear mounting on motorcycles, with a capacity of 46 liters. This product is made entirely of natural aluminum, which provides remarkable robustness and resistance to weather conditions. The natural finish of the aluminum is accompanied by soft lines, which differentiate it from other offerings in the TREKKER range, characterized by a more squared structure. This particular shape makes the DOLOMITI model particularly suitable for a wide variety of motorcycles, especially those with a classic or café racer style.

The internal capacity of the top case allows for the comfortable storage of two jet helmets or a single modular/full-face helmet, making it ideal for travel and commuting. The mounting system is via a MONOKEY plate, which ensures easy and secure installation on the motorcycle. The technical features of the top case include a Security Lock, which offers an additional level of security for the contents, and four upper nylon strap pass-throughs, allowing for the attachment of additional bags or other external accessories.

In addition to its functional features, the GIVI DLM46 TREKKER DOLOMITI top case offers customization options through a range of dedicated accessories. Among these, you can find an elastic net to attach under the lid, a nylon luggage rack, a polyurethane backrest, a waterproof internal bag, and a trolley base, among others. It is important to note that the top case cannot be attached to plates equipped with a stop light contact kit, an aspect to consider during installation.

FEATURES

• Dimensions: 340 x 460 x 410 mm
• Capacity: 46L / x2 jet helmets
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI DLMK36A TREKKER DOLOMITI Pair of Monokey side cases aluminum 36L

DLMK36APACK2

The Monokey GIVI DLMK36A TREKKER DOLOMITI side luggage pair is made of natural aluminum and designed to provide a robust and functional transport solution. With a capacity of 36 liters each, they are ideal for transporting equipment or luggage on road trips. The locking system uses identical keys and includes a third compatible cylinder for potential mounting on a top case.

The MONOKEY attachment system allows for quick opening and detachment using the same key, making the operation simple and fast. The luggage is compatible with GIVI tubular side racks from the PL, PLR, PLO, and PLOR series, ensuring wide compatibility.

Among the technical solutions stands out the WIRELEASE SYSTEM, which allows detachment from the side frame via an external knob connected to a patented cable system, located under the Security Lock. Attachment occurs without the need for rotation, simplifying use.

The patented HOLD IT EASY system allows the suitcase to tilt without completely detaching, facilitating loading operations even in the presence of a top case. Not compatible with some Monokey frames, it is provided detached to give the user the choice of installation, offering flexibility according to their needs.

FEATURES

• Dimensions: 379 x 495 x 242 mm
• Capacity: 36L + 36L
• Maximum load: 10 kg
• Sheet thickness: 1.5 mm
• Locking mechanism: SECURITY LOCK

GIVI SR5129 Monokey/Monolock rear rack without plate

SR5129

The GIVI SR5129 rear rack is a mount specifically designed for the installation of MONOKEY or MONOLOCK top cases. This product is compatible with a selection of BMW motorcycle models, including the F 750 GS from 2018-2020 and 2021-2023, the F 800 GS from 2024, and the F 850 GS from 2018-2020 and 2021-2023. Compatibility with these models ensures precise and secure installation, optimizing the functionality of the loading system.

For proper use of the rack, it must be paired with specific support plates. Available options include MONOKEY plates M5, M8A, M8B, M9A, or M9B, or MONOLOCK plates M5M or M6M. Alternatively, the EX2M aluminum bag holder can be used. It is important to note that pairing with plates M8A, M8B, M9A, and M9B does not allow for the installation of a stop light kit on the case or a remote-controlled opening device for the case, thus limiting some accessory functionalities.

The installation of the GIVI rack is only intended to be done with the original plastic rack of the motorcycle, which means that this accessory cannot be used without the original support. This specification is crucial to ensure the stability and safety of the transported load.

GIVI M8A TREKKER RACK Plate for Monokey topcase anodized aluminum

M8A

The GIVI M8A TREKKER RACK plate, made of anodized aluminum, is designed for mounting cases with Monokey attachment. Characterized by a robust and refined design, it offers a durable and lightweight solution, ideal for use in adventure or touring contexts, ensuring a secure attachment of the case.

Backrest for GIVI DLM30/46 TREKKER DOLOMITI topcase

E164

The GIVI E164 backrest is made in black with polyurethane padding, designed to provide comfort and support to the passenger. Its design perfectly integrates with the robust aesthetics of GIVI top cases.

This model is compatible with the GIVI DLM30 and DLM46 top cases from the TREKKER DOLOMITI series.

GIVI PLR5127 Monokey side frames rapid removal

PLR5127

The Monokey side frames GIVI PLR5127 are designed to provide a quick-release side luggage rack solution, specifically compatible with the MONOKEY and RETRO FIT luggage systems. This feature allows for extremely practical and fast installation and removal of the luggage, facilitating everyday use and transportation needs.

The PLR5127 frame system is compatible with a selection of BMW models, ensuring excellent adaptability and integration with the motorcycles. The specific models for which these frames are designed include the BMW F 750 GS from 2018 to 2020 and from 2021 to 2023, the BMW F 800 GS for the year 2024, the BMW F 850 GS from 2018 to 2020 and from 2021 to 2023, the BMW F 850 GS Adventure from 2019 to 2023, and finally the BMW F 900 GS Adventure for the year 2024. This wide compatibility makes the PLR5127 frames a versatile choice for BMW motorcycle owners looking to expand their carrying capacity.

It is important to note that the installation of the PLR5127 side frames is designed to be simple and straightforward, with no need for structural modifications to the motorcycle. This ensures that the integrity of the vehicle remains intact while maintaining both functionality and aesthetics.
