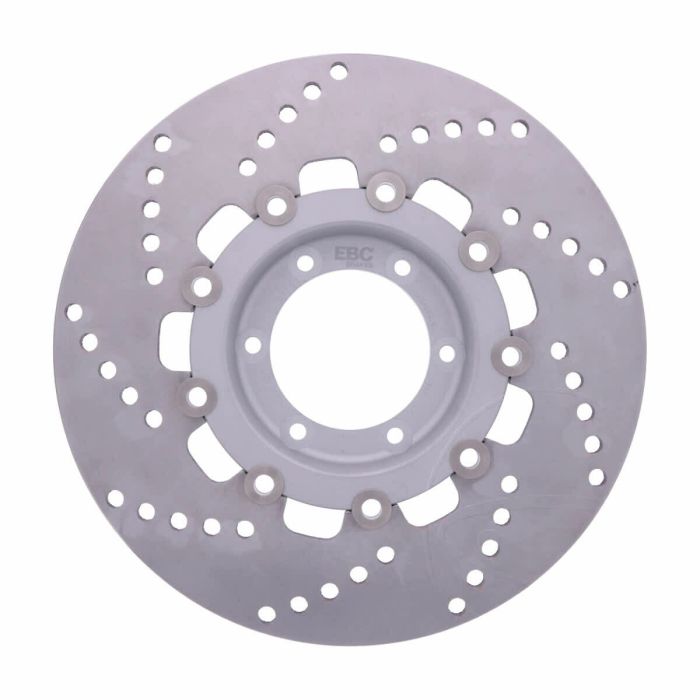

EBC MD4069LS Floating Brake Disc D.296mm 6 Bolts for Kawasaki H2
for KAWASAKI H1 MACH3, H2 MACH IV, Z1
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
The EBC floating brake disc with a diameter of 296 mm is designed to ensure superior performance and precise braking.
With an outer diameter of 296 mm and an inner diameter of 82.2 mm, this disc is perfect for a wide range of motorcycles.
The bolt hole spacing is 100 mm, with six mounting bolts that ensure optimal stability.
The bolt holes have a diameter of 8.7 mm, while the thickness of the disc is 7 mm, contributing to high resistance and durability.
The offset of 28.5 mm is designed to improve braking response, making every maneuver safer and more controlled.
This disc is compatible with fixed chains, offering a simple and quick installation.
Choosing the EBC floating brake disc means investing in a component that enhances the safety and performance of your motorcycle.
- Outer diameter: 296 mm
- Inner diameter: 82.2 mm
- Bolt hole spacing: 100 mm
- Number of mounting bolts: 6
- Diameter of bolt holes: 8.7 mm
- Disc thickness: 7 mm
- Offset: 28.5 mm
- Compatibility: fixed chains
| Inner diameter | 82,2 mm |
|---|---|
| Outer diameter | 296 mm |
| Hole diameter | 8,7 mm |
| Hole spacing | 100 mm |
| Number of holes | 6 |
| Thickness | 7 mm |
| Offset | 28,5 mm |
