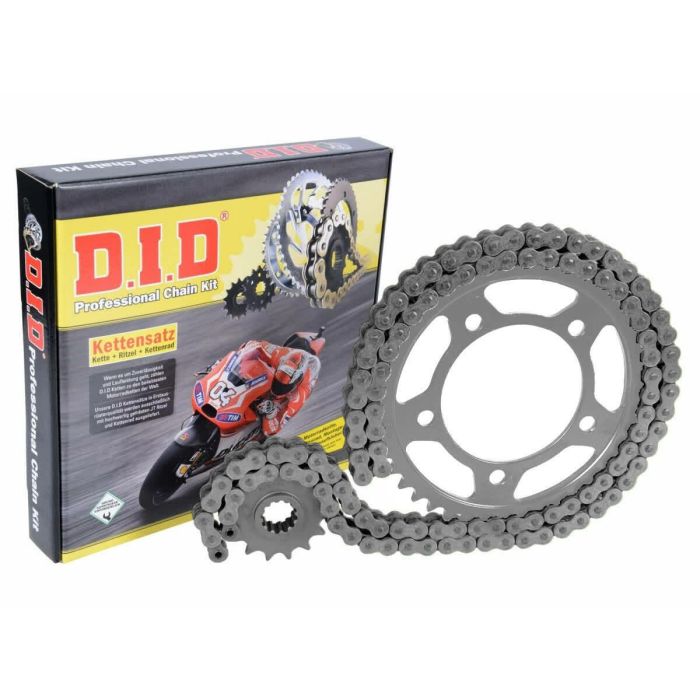

DID transmission kit open chain VX3 108-530 sprocket 46 teeth pinion 15 teeth for Cagiva

The Motorcycle Transmission Kit is the perfect ally for those seeking high performance and reliability on the road. Composed of a DID chain, a JT sprocket, and a JT rear sprocket, this kit is designed to ensure smooth and long-lasting operation.

The chain, with a pitch of 530 and a length of 108 links, features an O-Ring X-Ring system that provides a tensile strength of 4524 kg. Its open design and gray color, both externally and internally, not only give it an elegant appearance but also optimize performance. With a constant pitch index of 4000 and a rivet closure system, the chain is ready to withstand the most challenging demands.

The JT rear sprocket, with a pitch of 530 and an inner diameter of 130 mm, has a PCD of 152 mm and a tooth count of 46. Made of steel, it is designed to resist wear and ensure efficient power transmission. The six tapered bolts provide a secure and stable fastening.

The JT sprocket completes the kit with a pitch of 530 and a small engagement, characterized by an inner diameter ranging from 22.2 mm to 25 mm. With 14 teeth and a hole spacing of 38 mm, this component is essential for precise and responsive transmission. The width of 14 mm and the two fastening bolts ensure perfect integration with the chain and rear sprocket.

• DID Chain
• Pitch: 530
• Length: 108 links
• System: O-Ring X-Ring
• Tensile strength: 4524 kg
• Design: open, gray color
• Constant pitch index: 4000
• Closure system: rivet
• JT Rear Sprocket
• Pitch: 530
• Inner diameter: 130 mm
• PCD: 152 mm
• Number of teeth: 46
• Material: steel
• Tapered bolts: 6
• JT Sprocket
• Pitch: 530
• Engagement: small
• Inner diameter: 22.2 mm - 25 mm
• Number of teeth: 14
• Hole spacing: 38 mm
• Width: 14 mm
• Number of fastening bolts: 2
