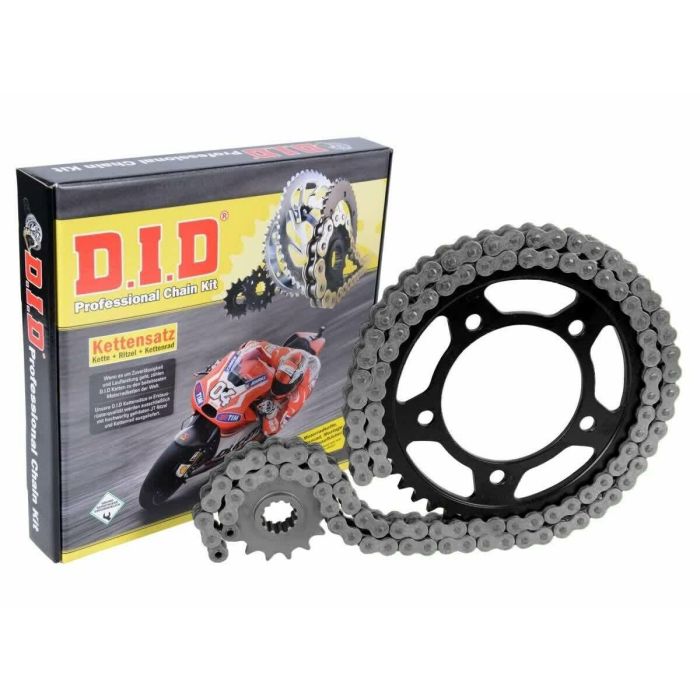

DID chain VX3 transmission kit 114 links 520 black sprocket 48 teeth 14 teeth pinion

The Motorcycle Transmission Kit is the ideal solution for those looking to improve the performance and reliability of their vehicle. Composed of a chain, a sprocket, and a pinion, this kit is designed to ensure smooth and long-lasting transmission.

The DID chain, with a pitch of 520 and a length of 114 links, features an innovative X-Ring system that offers a tensile strength of 3720 kg. Its open design and silver color, both externally and internally, give it a sleek and modern appearance, while the constant pitch index of 3500 ensures optimal performance over time. The rivet closure guarantees a secure and robust connection.

The JT sprocket, with a pitch of 520 and a tooth count of 48, is made from durable steel. With an inner diameter of 136 mm and a PCD of 156 mm, it is designed for precise mounting thanks to its six countersunk bolts. This combination of features ensures efficient power transmission.

The ESJOT pinion, also with a pitch of 520, features a small engagement and a tooth count of 14. With an inner diameter ranging from 22 mm to 25 mm and a width of 11.5 mm, it is designed to fit perfectly with the chain and sprocket, thus completing the kit for optimal performance.

• DID Chain
• Pitch: 520
• Number of links: 114
• System: X-Ring
• Tensile strength: 3720 kg
• Design: open, silver color (external and internal)
• Constant pitch index: 3500
• Closure: rivet
• JT Sprocket
• Pitch: 520
• Number of teeth: 48
• Material: durable steel
• Inner diameter: 136 mm
• PCD: 156 mm
• Mounting: six countersunk bolts
• ESJOT Pinion
• Pitch: 520
• Number of teeth: 14
• Inner diameter: ranging from 22 mm to 25 mm
• Width: 11.5 mm
