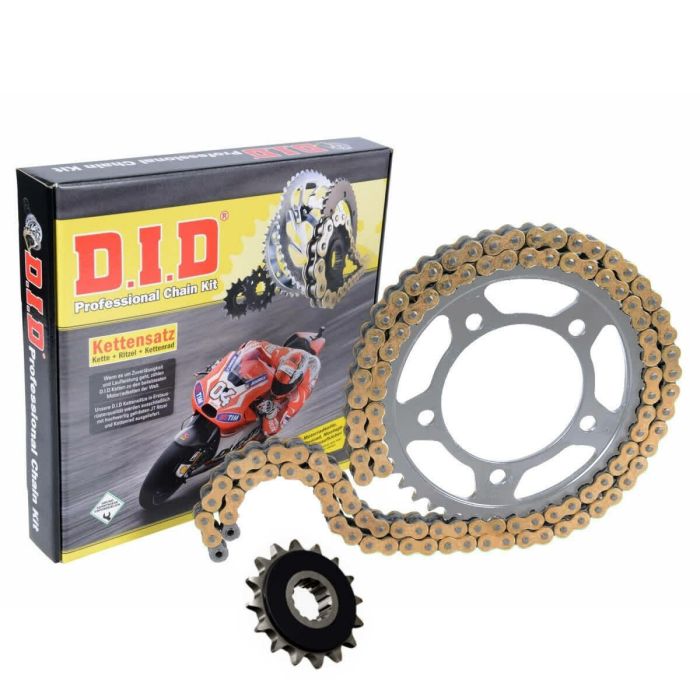

DID Gold Open Chain ZVMX2 Kit 108-530 43T Sprocket 17T Silent Sprocket for Honda

The Motorcycle Transmission Kit is the ideal solution for those looking to maximize the performance of their two-wheeler. Composed of a DID chain, a sprocket, and a JT pinion, this kit is designed to ensure smooth and long-lasting operation.

The chain, with a pitch of 530 and a length of 108 links, features an innovative O-Ring X-Ring system, which offers a tensile strength of 4720 kg. Its open design and gold color, both externally and internally, not only provide an attractive appearance but also ensure optimal performance. The constant pitch index of 4000 and the rivet closure type complete the technical characteristics of this essential component.

The sprocket, made of robust steel, has a pitch of 530 and an internal diameter of 154 mm. With 43 teeth and a PCD of 176 mm, it is designed for secure fastening with 6 flat-head bolts, ensuring stability and strength even in the most demanding conditions.

The pinion, also from the JT brand, is an essential component for the proper functioning of the transmission system. With a pitch of 530 and a number of teeth of 17, it features a small engagement fastening and has an internal diameter ranging from 26 to 30 mm. The distance between the fastening holes is 48 mm, while the width is 14.5 mm, ensuring precise and reliable mounting.

• DID Chain
• Pitch: 530
• Number of links: 108
• System: O-Ring X-Ring
• Tensile strength: 4720 kg
• Color: gold (external and internal)
• Constant pitch index: 4000
• Closure type: rivet
• Steel sprocket
• Pitch: 530
• Internal diameter: 154 mm
• Number of teeth: 43
• PCD: 176 mm
• Fastening: 6 flat-head bolts
• JT Pinion
• Pitch: 530
• Number of teeth: 17
• Fastening: small engagement
• Internal diameter: 26-30 mm
• Distance between fastening holes: 48 mm
• Width: 14.5 mm
