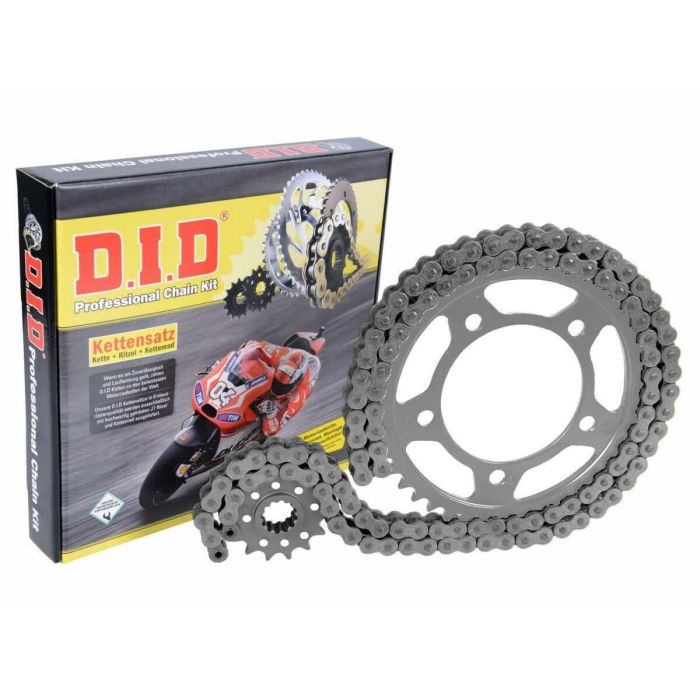

DID chain ZVMX2 transmission kit 114 links 525 sprocket 41 teeth racing pinion 14 teeth

Enhance your motorcycle's performance with our Transmission Kit, a perfect set of components designed to ensure smooth and responsive operation. This kit includes a DID chain, an ESJOT sprocket, and a JT pinion, all made to provide exceptional durability and reliability.

The DID chain, with a pitch of 525 and a length of 114 links, features an innovative O-Ring X-Ring system that reduces friction and increases tensile strength up to 4720 kg. Its open design and gray color, both externally and internally, give it a sleek and modern appearance, while the constant pitch index of 4000 ensures optimal performance.

The ESJOT sprocket, with a pitch of 520 and an internal diameter of 91 mm, is made from robust steel and features 41 teeth for optimized power transmission. The PCD of 110 mm and the 6 flat-head mounting bolts ensure unparalleled stability and safety while riding.

Completing the kit is the JT pinion, which offers a small engagement fitting and an internal diameter ranging from 25 to 28 mm. With 15 teeth and a width of 17 mm, this pinion is designed to work in perfect synergy with the chain and sprocket, ensuring smooth and responsive transmission.

• DID Chain:
• Pitch: 525
• Length: 114 links
• System: O-Ring X-Ring
• Tensile strength: up to 4720 kg
• Design: open, gray color
• Constant pitch index: 4000
• ESJOT Sprocket:
• Pitch: 520
• Internal diameter: 91 mm
• Material: steel
• Teeth: 41
• PCD: 110 mm
• Number of bolts: 6 with flat head
• JT Pinion:
• Fitting: small engagement
• Internal diameter: variable between 25 and 28 mm
• Teeth: 15
• Width: 17 mm
