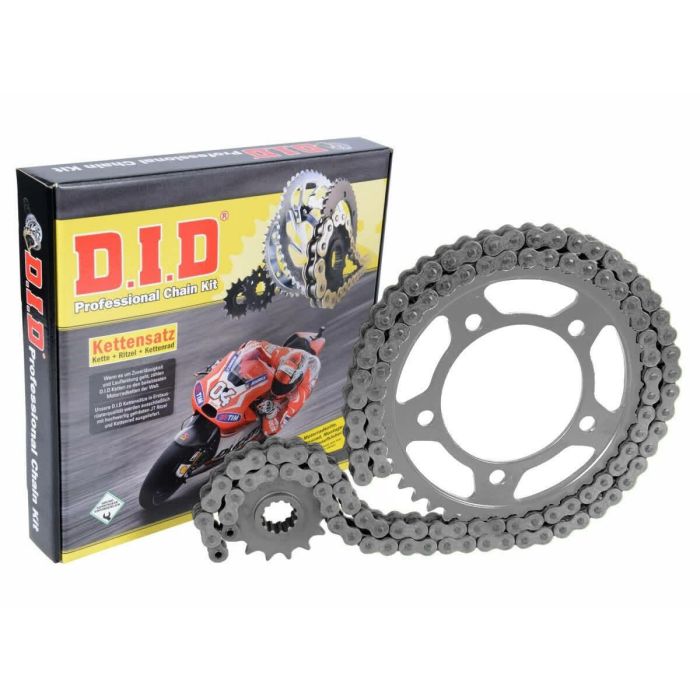

DID chain ZVMX2 transmission kit 94 links 525 rear sprocket 36z front sprocket 14 teeth

The Motorcycle Transmission Kit is the ideal solution for those seeking high performance and reliability in their vehicle. Composed of a DID chain, an ESJOT sprocket, and a JT pinion, this kit is designed to ensure a smooth and long-lasting transmission.

The chain, with a pitch of 525 and a length of 94 links, features an innovative O-Ring X-Ring system, which offers a tensile strength of 4720 kg. Its open design and gray color, both externally and internally, give it an elegant and modern appearance, while the constant pitch index of 4000 ensures uniform performance.

The ESJOT sprocket, with an internal diameter of 55 mm and 36 teeth, is made from robust steel and has a PCD of 85 mm. It is secured with 5 flat-head bolts, ensuring optimal stability during use.

The JT pinion, designed for a small engagement fitting, has an internal diameter ranging from 22.2 mm to 25 mm and features 14 teeth. With a width of 16 mm and a hole spacing of 38 mm, this component integrates perfectly into the transmission system, ensuring a quick and precise response.

Choosing the Transmission Kit means investing in a system that optimizes engine power, improving the efficiency and responsiveness of the motorcycle. Ideal for motorcycle enthusiasts who do not want to compromise on performance.

• DID Chain
• Pitch: 525
• Length: 94 links
• System: O-Ring X-Ring
• Tensile strength: 4720 kg
• Design: open, gray color
• Constant pitch index: 4000
• ESJOT Sprocket
• Internal diameter: 55 mm
• Teeth: 36
• Material: robust steel
• PCD: 85 mm
• Fixing: 5 flat-head bolts
• JT Pinion
• Fixing: small engagement
• Internal diameter: 22.2 mm - 25 mm
• Teeth: 14
• Width: 16 mm
• Hole spacing: 38 mm
