DID Open Chain HD Transmission Kit Gold 122 Links 428 Sprocket 54 Teeth Pinion 13 Teeth

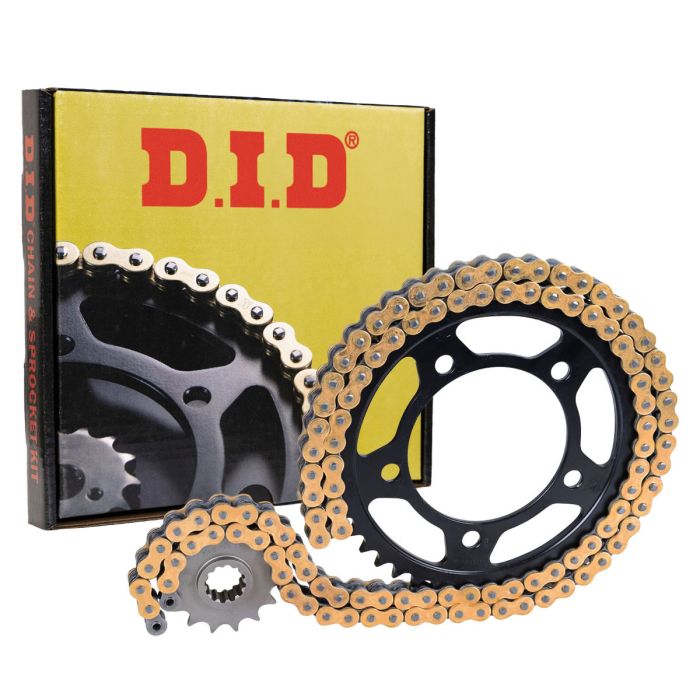

The Motorcycle Transmission Kit is the ideal solution for those seeking a high-performance and reliable transmission system. Composed of a DID chain, a JT sprocket, and a JT crown, this kit is designed to ensure excellent synergy among the various components, guaranteeing a smooth and responsive transmission.

The chain, with a pitch of 428 and a length of 122 links, features a high tensile strength of 2390 kg. Its open design, free of O-Rings, offers a lightweight construction that translates into superior performance. The gold color, both externally and internally, not only adds a touch of style but is also synonymous with durability.

The JT crown, with an inner diameter of 62 mm and a PCD of 80 mm, is made of robust steel and has 54 teeth, ensuring optimal power transmission. The four flat-head fastening bolts provide unparalleled stability during use.

The JT sprocket completes the kit with a wide engagement fitting, characterized by an inner diameter ranging from 16 to 20 mm and 13 teeth. The distance between the fastening holes, which is 34 mm, and the number of fastening bolts (two) ensure a simple and secure installation.

• DID Chain
• Pitch: 428
• Length: 122 links
• Tensile strength: 2390 kg
• Design: open, O-Ring free
• Color: gold (external and internal)
• JT Crown
• Inner diameter: 62 mm
• PCD: 80 mm
• Material: steel
• Number of teeth: 54
• Number of fastening bolts: 4
• Type of bolts: flat head
• JT Sprocket
• Fitting: wide engagement
• Inner diameter: variable between 16 and 20 mm
• Number of teeth: 13
• Distance between fastening holes: 34 mm
• Number of fastening bolts: 2
