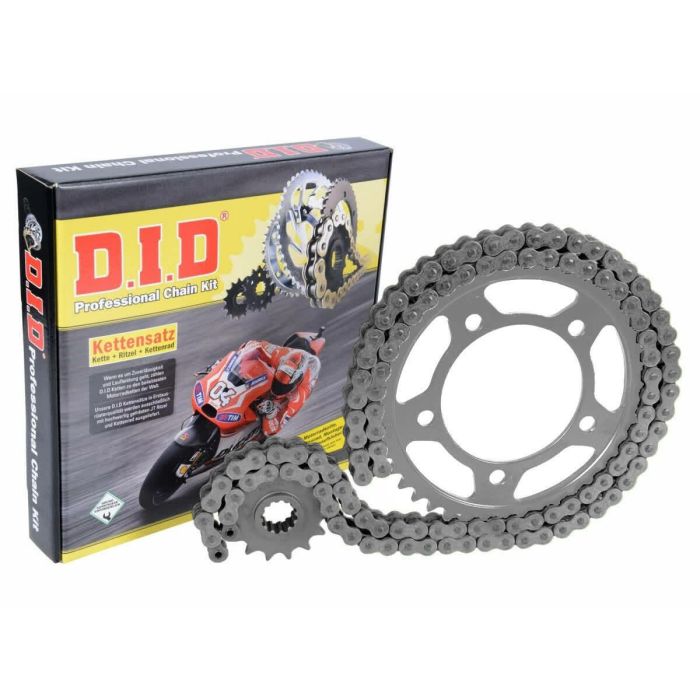

DID chain NZ3 transmission kit 130 links 420 sprocket 53 teeth pinion 11 teeth

The Transmission Kit is the ideal solution for those looking to optimize the performance of their motorcycle. Composed of a DID chain, a JT sprocket, and a JT rear sprocket, this kit is designed to ensure smooth and reliable operation.

The chain, with a pitch of 420 and a length of 130 links, offers a tensile strength of 2230 kg, ensuring long-lasting performance. Its open structure, free of O-Rings, makes it lightweight and suitable for various applications. The gray color of the chain, both externally and internally, gives it an elegant and modern appearance.

The JT rear sprocket, with an inner diameter of 108 mm and a PCD of 123 mm, is made from robust steel and features 53 teeth. Thanks to the six flat-head mounting bolts, it guarantees optimal stability during use.

The JT sprocket completes the kit with a wide engagement fitting and a tooth count of 11. With an inner diameter ranging from 14 mm to 17 mm and a hole spacing of 23.5 mm, it integrates perfectly with the chain and rear sprocket, ensuring smooth and responsive acceleration.

• DID Chain
• Pitch: 420
• Number of links: 130
• Tensile strength: 2230 kg
• Structure: open, O-Ring free
• Color: gray (external and internal)
• JT Rear Sprocket
• Inner diameter: 108 mm
• PCD: 123 mm
• Material: steel
• Number of teeth: 53
• Number of mounting bolts: 6 (flat head)
• JT Sprocket
• Mounting: wide engagement
• Number of teeth: 11
• Inner diameter: 14 mm - 17 mm
• Hole spacing: 23.5 mm
