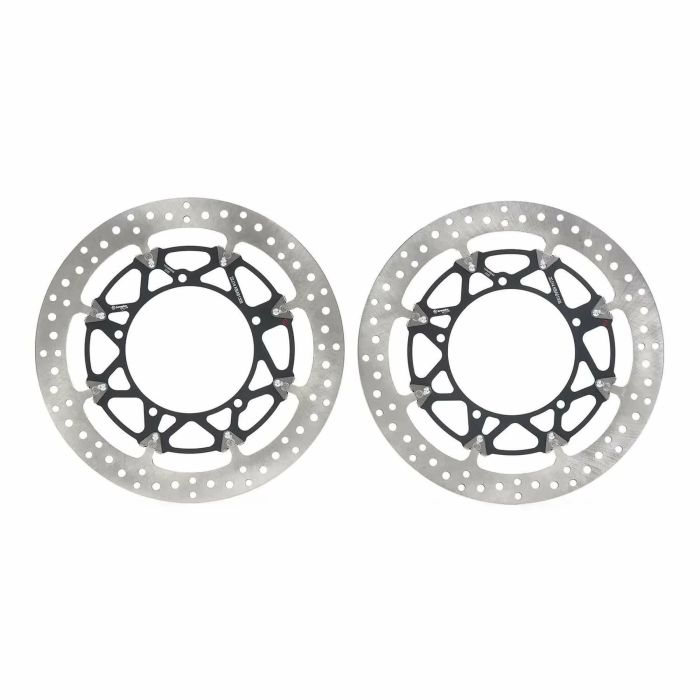

BREMBO T-Drive Floating Racing Brake Discs Pair 208A98548 D.320 Thickness 5.5mm for YAMAHA
for YAMAHA MT10, MT10 SP, YZF R1, YZF R1 RACE ABS, YZF R1M, YZF R6, YZF R9
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-5%
Special Price €898.30 Regular Price €945.56
The Racing T-DRIVE brake disc pair represents the pinnacle of braking technology, a result of Brembo's experience in motorsport competitions. Their innovative T-shaped pin design not only distinguishes the T-DRIVE from traditional discs with drag pins but also offers a significant increase in braking torque. This unique design is engineered to withstand extreme thermo-mechanical stresses, making these discs ideal for track use.
With a diameter of Ø320mm and a thickness of 5.5mm, the discs feature 5 holes with a diameter of 8.6mm and a centering of 132.4mm. Their floating configuration, with an offset of 2.45mm and a surface width of 32mm, ensures superior performance under high-intensity conditions. It is important to note that these discs are designed exclusively for racing use and are not compatible with Brembo Racing Low-Profile calipers.
- T-shaped pin design
- Increased braking torque
- Resistance to extreme thermo-mechanical stresses
- Diameter: Ø320mm
- Thickness: 5.5mm
- Number of holes: 5
- Hole diameter: 8.6mm
- Centering: 132.4mm
- Floating configuration
- Offset: 2.45mm
- Surface width: 32mm
- Designed exclusively for racing use
- Not compatible with Brembo Racing Low-Profile calipers
| Made in | Italy |
|---|---|
| Pieces | 2 |
| Homologation | No |
| Version | Racing |
| Template | T-DRIVE |
| Thickness | 5,5 mm |
| Number of holes | 5 |
| Holes diameter | 8,6 mm |
| Diameter | 320 mm |
| Disc type | Floating |
| Centring | 132,4 mm |
| Repairing holes | 150 mm |
| Offset | 2,45 mm |
| Surface Width | 32 mm |
