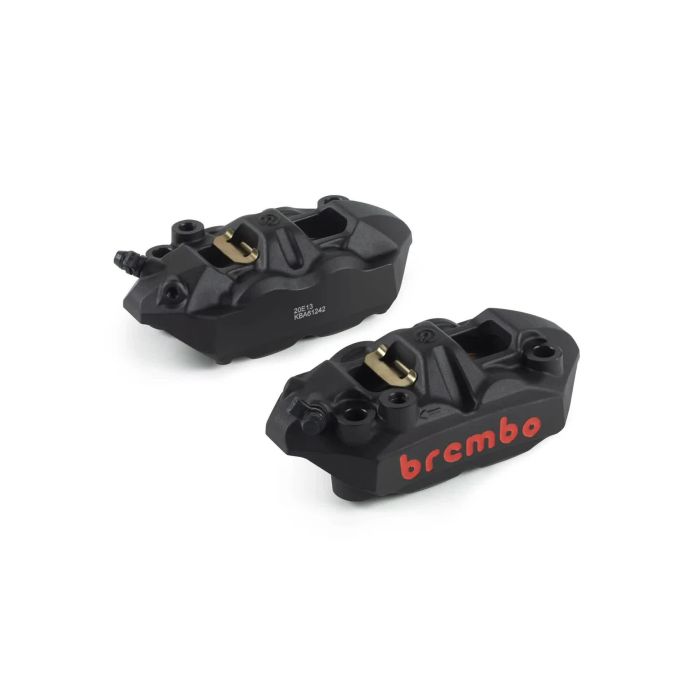

BREMBO racing brake caliper kit 220A39750 radial M4 4 pistons D.34 mm and bolt spacing 108

The BREMBO motorcycle brake caliper represents excellence in braking technology, designed to ensure superior performance on the track. Made from a single piece of cast aluminum, this monobloc caliper combines strength and lightness, offering a rigid body that ensures precise and responsive operation. The hydraulic design has been meticulously crafted, contributing to unparalleled braking efficiency.

With a 34mm piston and a total of four pistons, this caliper is capable of handling high loads, while the surface width of 32-34mm and the offset of 22.5mm ensure optimal installation on various racing motorcycles. Weighing in at just 795 grams without pads, this caliper is an ideal choice for riders looking to reduce the overall weight of their machine.

The black finish not only provides an elegant appearance but also offers additional protection. Pads are included, ready for use, while the caliper is designed to be incompatible with ABS systems and low-profile discs. With a center distance of 108mm and TUV approval, this caliper is perfect for those looking to maximize track performance. It is important to note that the torque of the bleed screw must be maintained between 7 and 10 Nm to ensure optimal operation.

• Material: Monobloc cast aluminum
• Piston: 34mm
• Number of pistons: 4
• Surface width: 32-34mm
• Offset: 22.5mm
• Weight: 795 grams (without pads)
• Finish: Black
• Compatibility: Not compatible with ABS systems and low-profile discs
• Center distance: 108mm
• Approval: TUV
• Torque of bleed screw: 7-10 Nm
