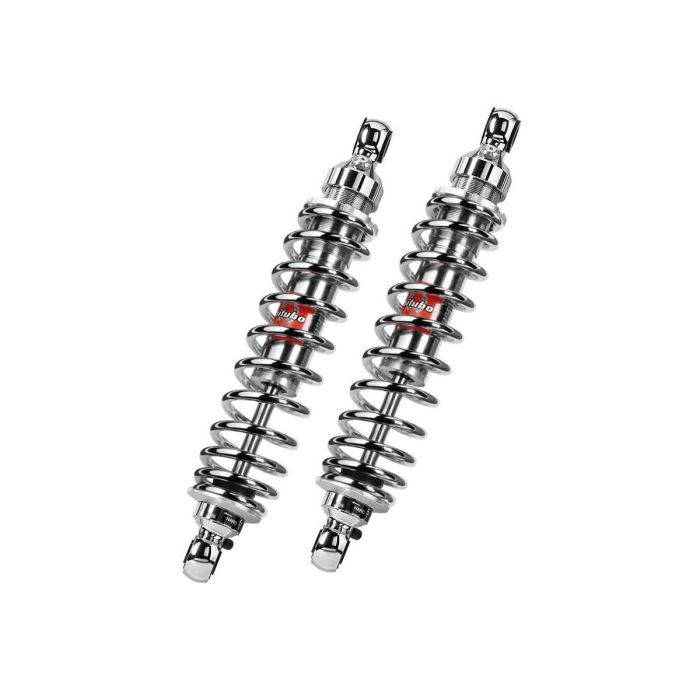

Pair of BITUBO rear shock absorbers with a distance of 281mm and chrome spring

for HARLEY DAVIDSON XL C SPORTSTER CUSTOM, XL CA SPORTSTER CUSTOM L. E., XL L SPORTSTER LOW, XL L SPORTSTER SUPER LOW, XL N SPORTSTER IRON, XL N SPORTSTER NIGHTSTER, XL R SPORTSTER, XL SPOR ...

Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table

Ref.
1525767
Cod.
HD024WME03

-10%

Special Price €525.90 Regular Price €584.38

Shipped within 3 days More info

Free shipping from €250 More info

Returns and changes within 30 days More info

The BITUBO rear shock absorber pair represents an excellent choice for those looking to improve their motorcycle's performance. With a total stroke of 40 mm, these shock absorbers provide great shock absorption capacity, ensuring a smooth and comfortable ride even on uneven terrains.

The 281 mm eye-to-eye length ensures perfect compatibility with a wide range of motorcycle models, making installation and adjustment easy. The gas pressure, set at 4 bar, helps maintain the stability and responsiveness of the shock absorber, enhancing the motorcycle's response during maneuvers.

The spring rate of 4.40 kg/mm is designed to offer an ideal balance between comfort and performance, allowing for both urban routes and extra-urban roads to be tackled with maximum safety. The spring length of 190 mm is designed to ensure optimal resistance and durability over time, making these shock absorbers a safe investment for any motorcyclist.

By choosing the BITUBO rear shock absorber pair, you opt for a high-quality product designed to enhance the riding experience and increase the motorcycle's stability in every situation.

- Monotube gas-pressurized shock absorbers (Nitrogen) for greater stability and comfort.

- Floating piston oil/gas separator for optimal performance.

- High-strength alloy steel body for durability and shock resistance.

- CNC-machined solid aluminum end caps for precision and lightweight.

- Continuous spring preload adjustment to adapt to different load conditions.

- Extension adjustment for improved control during riding.

- Includes specific mounting instructions, suspension manual, and preload adjustment tool.

- Accessory options such as upper and lower spring covers for aesthetic customization.

- Compact design for easy installation and reduced interference with the frame and other accessories.


Made inItaly
Preload16
Preloaded spring174
Primary spring length190 mm
Spring constant4.40 kg/mm
Gas pressure4 bar
Free piston position65
Total running40 mm
Length281 mm
This product fits your
This product does not fit with
HARLEY DAVIDSON
XL SPORTSTER 1200 2007-2011
XLH SPORTSTER ANNIVERSARY 1200 2004-2006
XLH SPORTSTER HUGGER 883 1992-2003
XL SPORTSTER 883 2007
XLC SPORTSTER CUSTOM 883 1998-2003
XLH SPORTSTER 1200 2004-2006
XLH SPORTSTER CUSTOM 883 2004-2006
XLR SPORTSTER 883 1999-2016
XLV SEVENTY TWO 1200 2012-2016
XLX FORTY EIGHT 1200 2010-2019
XL CA SPORTSTER CUSTOM L. E. 1200 2013-2016
XL X SPORTSTER FORTY EIGHT ANNIVERSA 1200 2010-2019
XL C SPORTSTER CUSTOM 883 2007-2010
XL C SPORTSTER CUSTOM 1200 2007-2018
XL L SPORTSTER LOW 1200 2006-2011
XL L SPORTSTER LOW 883 2005-2010
XL L SPORTSTER SUPER LOW 883 2011-2019
XL N SPORTSTER IRON 883 2009-2019
XL N SPORTSTER NIGHTSTER 1200 2007-2012
XL R SPORTSTER 883 1999-2016
XL T SPORTSTER SUPERLOW ABS 1200 2014-2019
XL V SPORTSTER SEVENTY TWO 1200 2012-2016
