ATHENA Forged 4T Piston 87.95mm 349CC Pin 18 Cylinder for Husqvarna/KTM
for KTM, HUSQVARNA
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-15%
Special Price €181.80 Regular Price €213.87

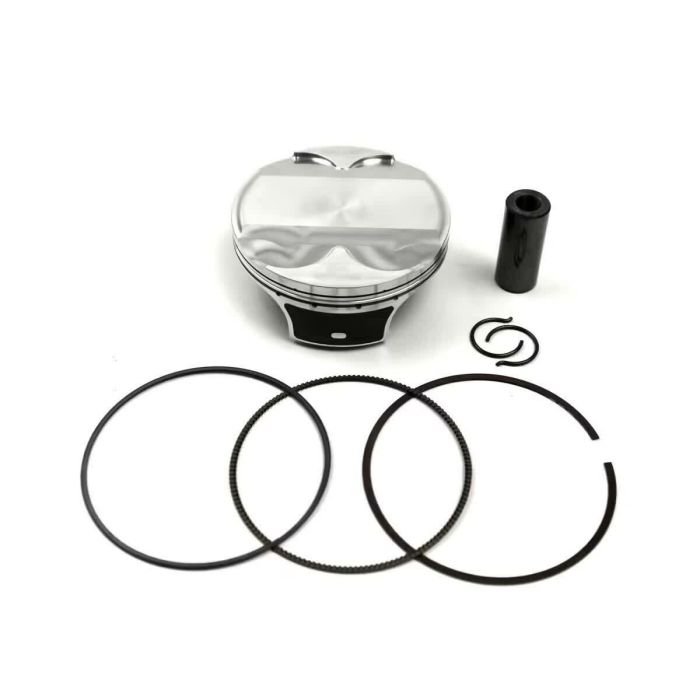

The ATHENA forged 4T piston, with a bore of 87.95 mm and a compression height of 20.50 mm, is designed for OE cylinders and offers high performance for 349 cc engines. This component is made with a type of forged piston, which ensures superior strength and greater efficiency in power transfer. The compression ratio of 14.2:1 optimizes combustion, contributing to improved overall engine performance.
The piston is equipped with a standard pin, measuring 18X10X42 mm, which ensures simple and precise installation. With two rings, this piston is designed to provide effective sealing, minimizing compression losses and enhancing engine response. The piston head is flat type, a choice that promotes uniform combustion and optimal power distribution.
- Bore: 87.95 mm
- Compression height: 20.50 mm
- Designed for OE cylinders
- High performance for engine displacement: 349 cc
- Piston type: forged
- Compression ratio: 14.2:1
- Standard pin: 18X10X42 mm
- Number of rings: 2
- Effective sealing to reduce compression losses
- Piston head: flat type
In summary, the ATHENA 4T piston represents an excellent choice for those looking to enhance their engine's performance, combining robustness and advanced technology in a single product.
Race Use Only Product - Not intended for street use
| Type | Forged |
|---|---|
| Bore | 87,95 |
| Displacement | 349 |
| Compression height | 20,50mm |
| Compression ratio | 14.2:1 |
| Connecting rod pin | 18x10x42 |
| Number of segments | 2 |
| Piston head | flat |
