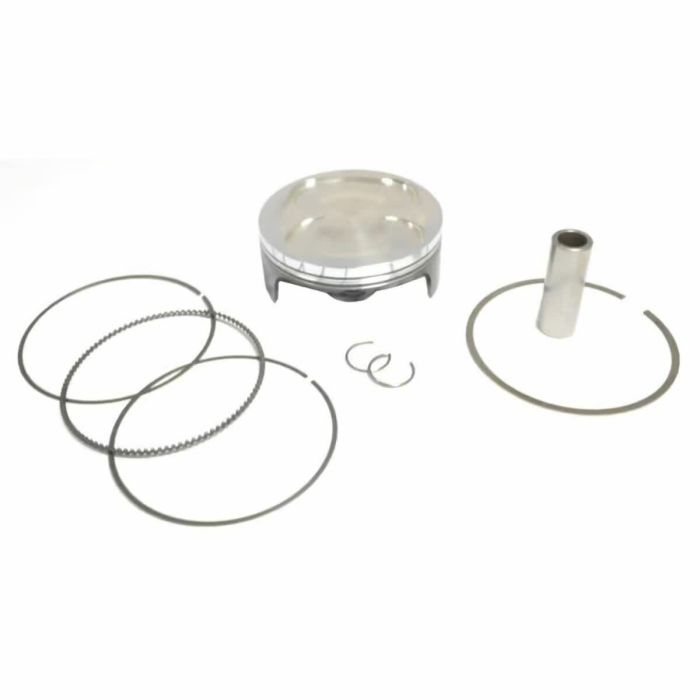

ATHENA Forged 4T Piston 81.95mm 284CC Pin 16 Big Bore Cylinder for Honda
for HONDA CRF R, CRF X
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
-15%
Special Price €200.10 Regular Price €235.36
The forged 4T piston from ATHENA, with a bore of 81.95 mm, is designed to deliver high performance and immediate engine response. With a displacement of 284 cc, this piston is ideal for those looking to enhance their motorcycle and improve the riding experience. Its compression height of 19 mm helps optimize the compression ratio, set at 13.5:1, ensuring efficient combustion and increased power.
- Bore: 81.95 mm
- Displacement: 284 cc
- Compression height: 19 mm
- Compression ratio: 13.5:1
- Piston pin diameter: 16x10x44.5 mm
- Number of rings: 2
- Type: Forged
The piston features a piston pin diameter of 16x10x44.5 mm and has two rings, which ensure a perfect seal and reduce friction, essential elements for the smooth operation of the engine. The forged type of the piston offers superior strength, making it suitable for extreme operating conditions and intensive use. With the ATHENA 4T piston, every motorcyclist can experience an increase in performance and greater responsiveness of their vehicle, elevating the level of fun and adrenaline while riding.
Product Race Use Only - Not intended for road use
| Type | Forged |
|---|---|
| Bore | 81,95 |
| Displacement | 284 |
| Compression height | 19mm |
| Compression ratio | 13.5:1 |
| Connecting rod pin | 16x10x44,5 |
| Number of segments | 2 |
