ATHENA crankshaft stroke 37.40 pin 10 109.70mm for Suzuki
for SUZUKI AY 50 KATANA AC, AY KATANA
Check the compatibility with your motorcycle
FIND YOUR BIKE - compatibility table
Ref.
130379
Cod.
061514
-15%
Special Price €98.40 Regular Price €115.80

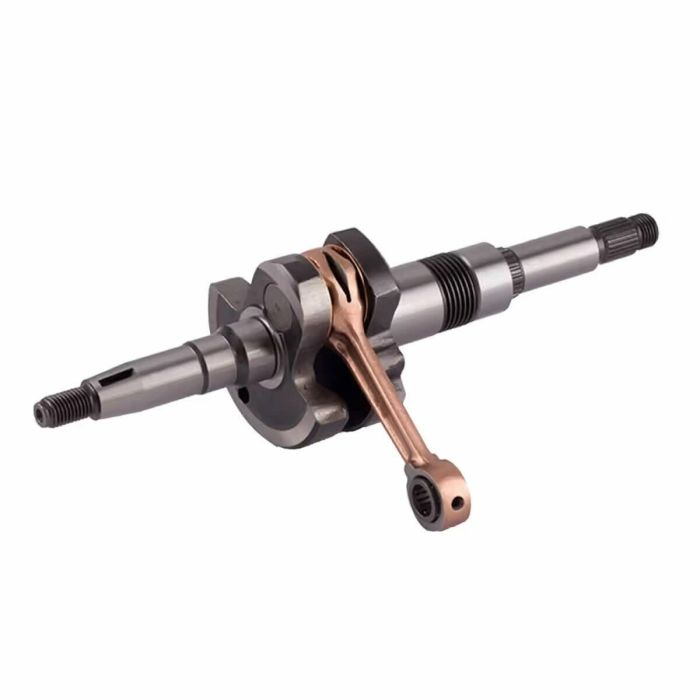

The ATHENA crankshaft represents an excellent choice for those who want to keep their motorcycle's performance at the highest level. With a stroke of 37.40 mm and a maneuvering radius of 18.70 mm, this component is designed to ensure smooth and responsive operation. Its structure is optimized to fit perfectly with the engine, contributing to efficient combustion and consistent power.
- Stroke: 37.40 mm
- Maneuvering radius: 18.70 mm
- Connecting rod foot bearing: 10x14x13 mm
- Connecting rod head bearing: 16x22x12 mm
- Pulley side pin diameter: 25 mm
- Flywheel side pin diameter: 20 mm
- Total thrust width: 36 mm
- Pulley side pin length: 109.70 mm
- Flywheel side pin length: 61.50 mm
Choosing the ATHENA crankshaft means opting for a product that integrates perfectly with your engine, ensuring high performance and a quick response in every driving situation.
| Stroke | 37,40 |
|---|---|
| Crank radius | 18,70 |
| Flywheel | 20x25x61,50mm |
This product fits your
This product does not fit with
SUZUKI
AY 50 KATANA AC 50 1997-1998
AY KATANA 50 1997-2001
