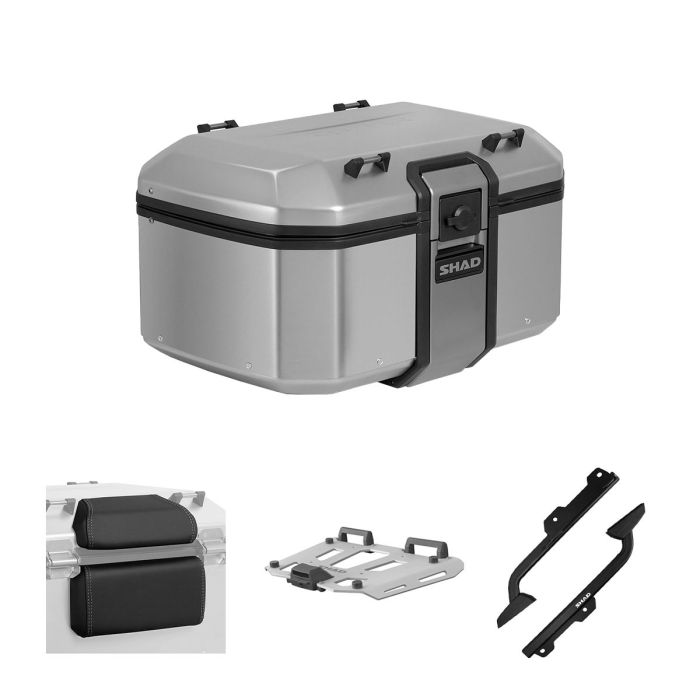

SHAD TERRA TR55 Topcase-Kit Aluminium für TRIUMPH Tiger 900/850/1200

SHAD-kit bestehend aus folgenden elementen:

BAULETTO MOTO SHAD TERRA TR55 ALLUMINIO 55L

D0TR55100

TERRA TR55 top case has capacity for two flip-up helmets and stands out since it is the lightest aluminium case on the market at 5.4 kg. Designed and made 100% in Barcelona. Its innovative design minimises visual impact on the motorcycle. The TERRA TR55 top case has been awarded with the ABC Awards, thanks to its design focused on solving key aspects for the use on adventure motorcycles.

It has an aerodynamic, integrated structure made from a hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain minimum weight with maximum resistance.
As with all TERRA aluminium cases, the ‘TERRA Lock System’ (patent pending) is included. With an AISI 304 industrial grade stainless steel structure which includes the lock system and a retractable carrying handle. This structure was designed for quick, one-hand usage and allows the user to open, close, remove, and transport the case within seconds. AISI 304 stainless steel hinges are also available.

The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance). In addition, the inner foam base reduces movement of the load inside.

The keys and lock cylinder of the TR55 are the premium version from SHAD, with a system that reduces the chance of theft, as well as a cover that stops dust from entering.

There is the option to add additional load thanks to its external AISI 304 stainless steel hooks.

The installation of a SHAD Top Master and a mounting plate (not included) are required. There are three mounting plate options: SHAD standard plate (D1B591PA), aluminium mounting plate (D1BTRPA), or the black aluminium mounting plate (D1BTRPA2).

The lock cylinders are easily changed: top and side cases can be unified for use with one key in less than 5 minutes. A third cylinder is included for the top case in the right-side case.

Accessories (not included): Two-piece backrest (D0RI75) and expandable inner bag (X0IB10).

Trager Fur Motorrad Top Box TOP MASTER

T0TG90ST

The SHAD Top Master fitting allows mounting a top case onto the motorcycle.It is a fitting specifically designed por each motorcycle model, taking into account its features. The result is a high-quality product, comfortable, safe, and easy to assemble and disassemble.
To mount the top case onto the bike it is necessary to add to this top fitting, the plate included in the SHAD cases (except for TR48/TR37).

Compatible with all mounting plates, valid for all SHAD and SHAD TERRA top cases.

Topcase Platte SHAD D1BTRPA TOP MASTER ALUMINIUM GRIGIO

D1BTRPA

Mounting plate made of solid 5mm aluminium, laser cut, that allows an innovative and functional design: better integration on the bike and additional tiedown points to carry extra cargo. Thismounting plate has been designed and made in Barcelona and it can be used with the top cases of the SHAD TERRA range (TR48, TR37).

Topcase Ruckenlehne SHAD BACKREST TERRA TOP CASES

D0RI75

Backrest for Terra top cases. 2 piece set. The new best friend for any co-pilot. Made from high quality bielastic Skay & high performance polyurethane cushion that provides long life even in extreme conditions.
