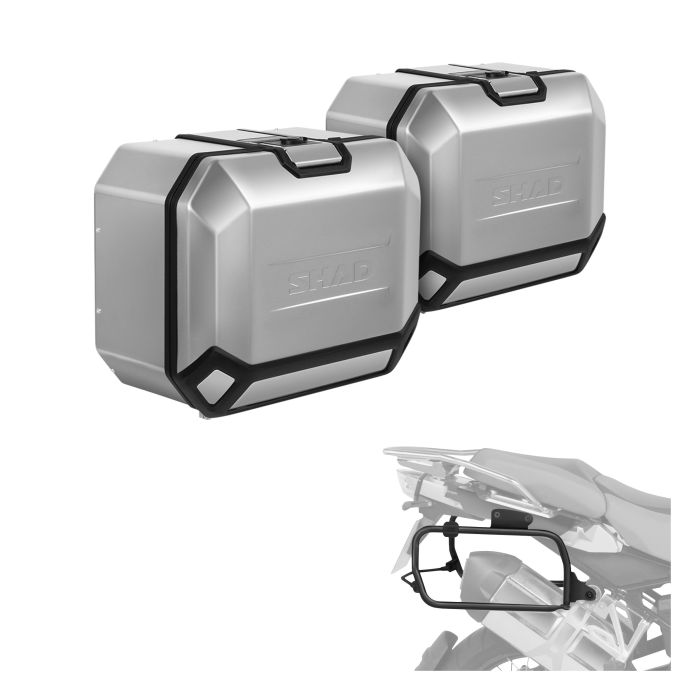

SHAD TERRA TR47 Koffer-Kit Aluminium 4P für ZONTES F 703

SHAD-kit bestehend aus folgenden elementen:

SHAD TERRA TR47 Motorrad-Seitenkoffer Aluminium linke Seite 47L

D0TR47100L

The TR47L side case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

The TR47L side case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

• Capacity for 1 helmet (Trail) or 2 helmets (Flip-up and jet).

• “TERRA Lock System” patented. Includes the lock mechanism and a retractable carrying handle. Designed for quick use with one hand which allows the user to open, close, mount and remove the case in just a few seconds.

• It has an aerodynamic, integrated structure made from a hardened aluminium alloy.

• Side opening: perfect for “packing”, with large capacity and space, and an internal tray that allows you to hold your belongings, keep them tidy and prevent them from falling out when you open the suitcase.

• The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance).

• The keys and lock cylinder are the new premium version from SHAD, with a system that reduces the chance of theft. And a cover that stops dust from entering. (Keys and cylinder included only in right hand case).

• Compatible with SHAD 4P SYSTEM.

• Maximum recommended load: 10 kg.

• Size: 49,5/41,8/34,5 cm.

• Weight: 8,2 kg.

• Designed and made 100% in Barcelona.

• Accessories (not included): Expandable inner bag (X0IB47), Inner mesh (X0TR01).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-200) can be installed, allowing the use of the original BMW key.

Check SHAD.es for product-specific accessories made to enhance your riding experience.

ERSATZTEILE

• D1TRTSR - Topcase Schloss SHAD UPPER PART TERRA LOCKING SYSTEM
• D1TR47MIR - Topcase Schloss SHAD LOWERPART TR47 LOCKING SYSTEM
• 203507R - Top Case Ersatzteile SHAD BOX SEAL GASKET TERRA
• D1TR361PR - Top Case Ersatzteile SHAD TERRA SIDE CASE FITTING BRACKET
• 203163R - Topcase Abdeckung SHAD 203163R SILBER aluminium cover terra side case
• D1B6TIR - Top Case Ersatzteile SHAD LID STOP STRAP
• D1TRBOR - Topcase Schloss SHAD TERRA LOCK + KEY

KOMPATIBEL MIT

• D1TRBOR - Topcase Schloss SHAD TERRA LOCK + KEY
• X0IB47 - Interne Motorradtaschen SHAD X0IB47 33L
• X0TR01 - Top Case Ersatzteile SHAD INNER MESH TERRA SIDE CASES

SHAD TERRA TR47 Motorrad-Seitenkoffer Aluminium rechte Seite 47L

D0TR47100R

The TR47R side case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

The TR47R side case is designed, engineered and made 100% in Barcelona with capacity for one helmet (Trail) or 2 helmets (Flip-up and jet). Made from hardened aluminium alloy, a stronger and lighter type of aluminium which allows a reduced cross section of 1.2mm to obtain a minimum weight with maximum resistance. Includes the patented “TERRA Lock System”.

• Capacity for 1 helmet (Trail) or 2 helmets (Flip-up and jet).

• “TERRA Lock System” patented. Includes the lock mechanism and a retractable carrying handle. Designed for quick use with one hand which allows the user to open, close, mount and remove the case in just a few seconds.

• It has an aerodynamic, integrated structure made from a hardened aluminium alloy.

• Side opening: perfect for “packing”, with large capacity and space, and an internal tray that allows you to hold your belongings, keep them tidy and prevent them from falling out when you open the suitcase.

• The case’s rubber sealed frame protects the interior from unfavourable weather conditions (water resistance).

• The keys and lock cylinder are the new premium version from SHAD (3 lock cylinders and 2 keys included). System that reduces the chance of theft and with a cover that stops dust from entering

• Compatible with SHAD 4P SYSTEM.

• Maximum recommended load: 10 kg.

• Size: 49,5/41,8/34,5 cm.

• Weight: 8,4 kg.

• Designed and made 100% in Barcelona.

• Optional accessories: Inner bag (X0IB47) Inner mesh (X0TR01, included).

• BMW key compatibility: The Wunderlich cylinder (Ref.: 30164-200) can be installed, allowing the use of the original BMW key.

Check SHAD.es for product-specific accessories made to enhance your riding experience.

ERSATZTEILE

• D1TRTSR - Topcase Schloss SHAD UPPER PART TERRA LOCKING SYSTEM
• D1TR47MIR - Topcase Schloss SHAD LOWERPART TR47 LOCKING SYSTEM
• D1TRBOR - Topcase Schloss SHAD TERRA LOCK + KEY
• 203507R - Top Case Ersatzteile SHAD BOX SEAL GASKET TERRA
• D1TR361PR - Top Case Ersatzteile SHAD TERRA SIDE CASE FITTING BRACKET
• 203163R - Topcase Abdeckung SHAD 203163R SILBER aluminium cover terra side case
• D1B6TIR - Top Case Ersatzteile SHAD LID STOP STRAP

KOMPATIBEL MIT

• X0IB47 - Interne Motorradtaschen SHAD X0IB47 33L

SHAD 4P System Seitenrahmen für ZONTES F 703

Z0FL754P

Fitting to mount SHAD side cases on the motorcycle.

Designed and engineered 100% in Barcelona to mount the side cases & saddlebags.

· Steel structure covered with high resistant powder coated paint.

· 20mm diameter, the thickest on the market, it provides maximum durability and resistance.

· Reinforced with a crossbar for the most extreme rides.

Before starting any installation, please read these instructions carefully, from start to finish.

Check the difficulty level on the user guide and refer to the “Installation Difficulty Description” document available on our website shad.es/faqs.

Failure to follow the installation guidelines will void the warranty. The manufacturer will not be held responsible for any damage or injury resulting from improper installation or misuse.

ATTENTION: To install the SH23 side case, the D1TR27FIR adapter is required.

KOMPATIBEL MIT

• D0B23100 - Motorrad Seitenkoffer SHAD SH23 3P SYSTEM SCHWARZ 23L
• D0B35200 - Motorrad Seitenkoffer SHAD SH35 3P SYSTEM SILBER 35L
• D0B36200 - Motorrad Seitenkoffer SHAD SH36 3P SYSTEM CARBON 36L
• D0B38106 - Erweiterbares Seitengepäck-Set SHAD SH38X Carbon 3P System
• D0B38200 - Paar erweiterbare Seitentaschen SHAD SH38X Aluminium 3P System
• D0TR36100L - Motorradkoffer Aluminium SHAD TR36L TERRA LEFT 4P SYSTEM 36L
• D0TR36100LB - Motorradkoffer Aluminium SHAD TR36L TERRA BLACK EDITION LEFT 4P SYSTEM 36L
• D0TR36100R - Motorradkoffer Aluminium SHAD TR36R TERRA RIGHT 4P SYSTEM 36L
• D0TR36100RB - Motorradkoffer Aluminium SHAD TR36R TERRA BLACK EDITION RIGHT 4P SYSTEM 36L
• D0TR47100L - Motorradkoffer Aluminium SHAD TR47L TERRA LEFT 4P SYSTEM 47L
• D0TR47100LB - Motorrad Seitenkoffer SHAD TR47L TERRA BLACK EDITION 4P SYSTEM SCHWARZ 47L
• D0TR47100R - Motorradkoffer Aluminium SHAD TR47R TERRA RIGHT 4P SYSTEM 47L
• D0TR47100RB - Motorradkoffer Aluminium SHAD TR47R TERRA BLACK EDITION RIGHT 4P SYSTEM 47L
• X0TR30 - SHAD TERRA TR30 Motorrad-Satteltaschen-Paar wasserdicht schwarz 30L
• X0TR402 - SHAD TERRA TR40 Paar Seitentaschen wasserdicht 32L

ATTENTION: To install the SH23 side case, the D1TR27FIR adapter is required.
