Zylinderkit BIDALOT BID11000588

We are always looking for more power, more performance and more speed, and tuning expert Bidalot from France is definitely one of our go-to manufacturers when it comes to high-quality, extremely powerful racing products. The Bidalot Racing Factory 50cc WR Derbi Euro3 cylinder kit is another milestone in the high-end 2-stroke tuning. The Bidalot RF50WR racing kit is a powerhouse inspired by and developed for racing, and has been successfully tested on international racetracks. The name RF-WR (WR = world record) refers to the 2018 world speed record on Lake Bonneville, USA. The Nikasil-coated aluminium cylinder has 5 transfer ports and an exhaust plus boost ports. Cylinder bore is 40mm. The cylinder head has a special coating and provides excellent cooling of the self-centering combustion chamber. The piston is made of a very heat-resistant aluminium-silicon alloy for extended service life. Attention : this high-end tuning cylinder has to be run with other appropriate high-end tuning components (internal rotor ignition, 28 or 30mm carburetor, V-Force reed valve, reinforced clutch)
you also need the matching Bidalot crankshaft with 39.7mm stroke and 85mm connecting rod . If you don't want to go all the way, we recommend to use the regular Bidalot RF50WR version (lower compression). Technical Specifications: Nikasil-coated aluminium cylinder 5 transfer ports – exhaust with boost ports aluminium-silicon piston, 40mm chrome-plated piston ring, 40x1mm 39.7mm stroke - 85mm connecting rod flange 28x30mm - 4 screws (hole spacing: 48mm)

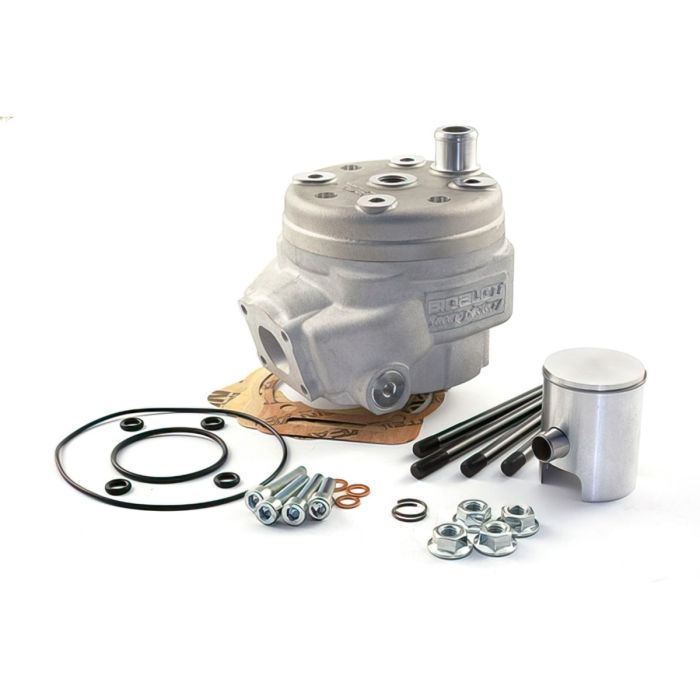

Bidalot Cylinder Kit Racing RF50WR Derbi Euro3
Item No.: BID11000588
Brand: Bidalot
Homologation: Yes
Displacement: 50cc
Stroke: 39,7 mm
Conrod Length: 85 mm
Product Line: Hyper racing
Material: Aluminium
Bore: 40 mm
Piston Pin: Original
